FM3635 | FM-3635 | 3.5mm x 25mm Automatic Screw Feeder, 150cc
Overview

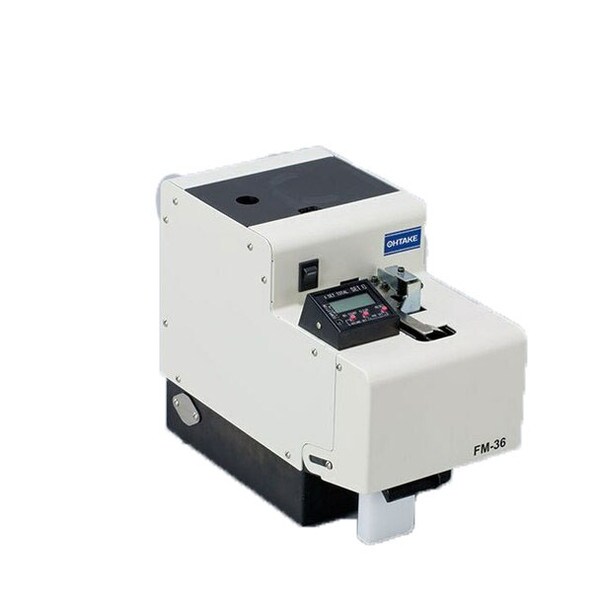

Introducing the Ohtake FM-3635 Automatic Screw Feeder, a revolutionary solution designed to streamline your assembly processes and enhance productivity. This state-of-the-art screw feeder is meticulously engineered to provide continuous and efficient feeding of 3.5mm x 25mm screws, ensuring seamless integration into your manufacturing operations.
- Screw Size: 3.5mm x 25mm
- Capacity: 150cc
- Screw Length Compatibility: Up to 25mm
- Feeding Method: Continuous from rail
- Installation: Easy
- Manufacturer: Ohtake
Features & Benefits
- Precise Screw Presentation: The FM-3635 Automatic Screw Feeder accurately presents 3.5mm x 25mm screws, eliminating the need for manual feeding and reducing the risk of errors.
- Versatile Screw Compatibility: This screw feeder can accommodate screws up to 25mm in length, offering flexibility for a wide range of assembly applications.
- Adaptable Manufacturing Integration: Designed for versatility, this screw feeder can be seamlessly integrated into various manufacturing settings, enhancing overall production capabilities.
- Continuous Screw Supply: The FM-3635 ensures a continuous supply of screws from the rail, minimizing downtime and maximizing production efficiency.
- Effortless Installation: The Ohtake FM-3635 Automatic Screw Feeder boasts easy installation, allowing for quick setup and integration into your existing assembly line.
Technical Specifications
Type
Automatic Pneumatic Screw Feeder
Screw Diameter - mm
3.5
Max Screw Length - mm
25
Capacity - cc
150
Dimensions - mm
130 x 254 x 201
Power Supply
AC100 - 240V DC15V
Weight - kg
6
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
