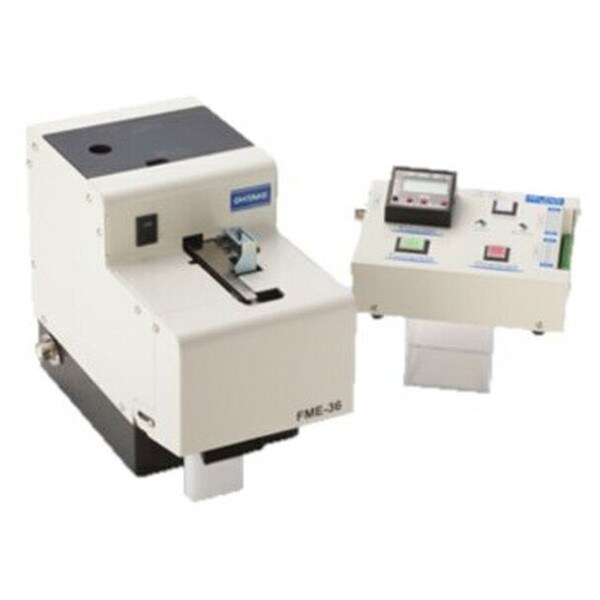

FME-3650 | 5mm x 25mm Automatic Screw Feeder, 150cc
Overview
Introducing the Ohtake FME-3650 Automatic Screw Feeder, a revolutionary solution for streamlining your assembly processes. This advanced screw feeder, manufactured by Ohtake, is designed to enhance efficiency and accuracy in various manufacturing settings.
- Screw Size: 5mm x 25mm
- Hopper Capacity: 150cc
- Counter Range: Up to 127
- Screw Supply: Continuous from Rail
- Compatibility: Various Manufacturing Settings
- Installation: Easy and Convenient
- Manufacturer: Ohtake
Features & Benefits
- Precise Screw Presentation: The FME-3650 is capable of presenting 5mm x 25mm screws with utmost precision, ensuring consistent and reliable screw placement.
- Generous Capacity: With a hopper capacity of 150cc, this screw feeder can accommodate a substantial quantity of screws, reducing the need for frequent refilling and minimizing downtime.
- Continuous Screw Supply: The FME-3650 ensures a continuous supply of screws from the rail, eliminating the need for manual loading and maximizing productivity.
- Adjustable Counter: The counter can be conveniently set up to 127, allowing for precise control over the number of screws dispensed, ideal for repetitive assembly tasks.
- Versatile Compatibility: This screw feeder is compatible with different manufacturing settings, making it a versatile addition to your assembly line.
Technical Specifications
Type
Automatic Pneumatic Screw Feeder
Screw Diameter - mm
5
Max Screw Length - mm
25
Capacity - cc
150
Dimensions - mm
130 x 254 x 201
Power Supply
AC100 - 240V DC15V
Weight - kg
6
Technical Documents
Ohtake Screw Presenters Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
