Overview

TSLOTS 650106

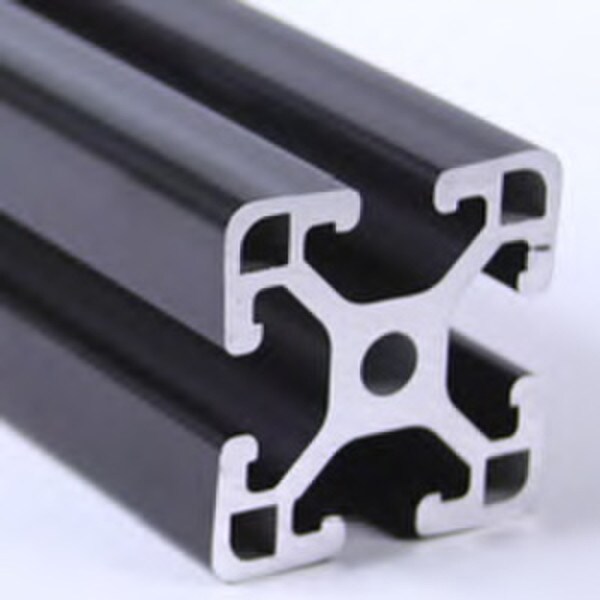

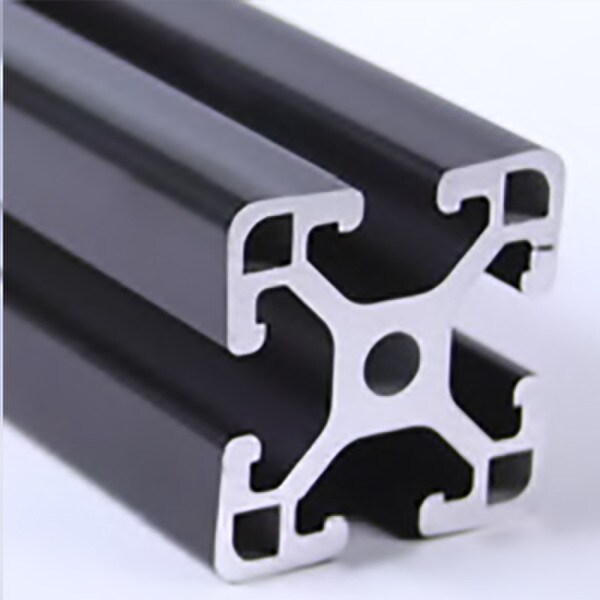

1.5” X 1.5”L Black T-Slotted Aluminum

The TSLOTS 1.5” X 1.5”L Black T-Slotted Aluminum is available to order online at FlexibleAutomationSupply.com.

Are you looking for a custom extrusion or 1.5” X 1.5”L Black T-Slotted Aluminum that is similar to the current 650106? Contact Customer Service for more information.

Back

Features & Benefits

  • Lite Fractional Extrusion
  • Black Anodized finish
  • Order by in, ft, or mm
  • Request cut lengths up to 240'' (20 ft / 6096 mm)
Back

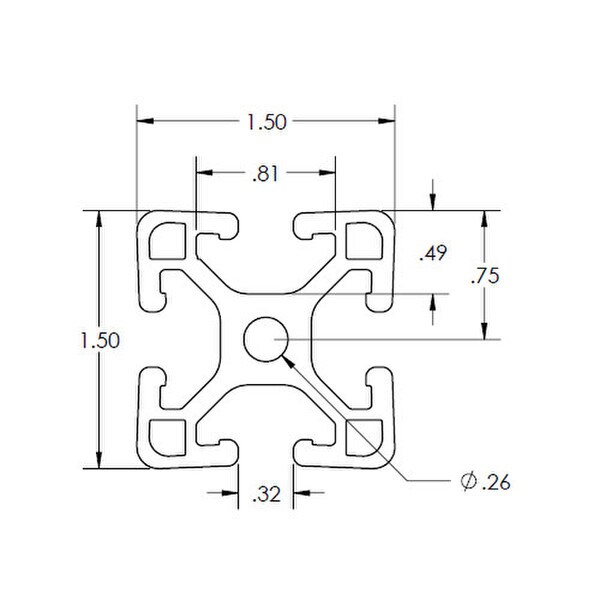

Technical Specifications

# Slots
4
Dimension C
0.32
Dimension D
Ø.26
Dimension A
1.00
Dimension B
1.50
Iy
.194 in4 (8.075 cm4)
Model
650106
Estimated Area
0.925 in2
Type
Lite
Manufacturer
TSLOTS
Finish
Black Anodized
Length (mm)
6096
Length (In)
240
SKU
650106
Width (in)
1.5
Weight (lbs)
1.093 lbs/ft
Height (in)
1.5
Series
15
Length (in)
1
