650109 | 1.5 in. x 3.0 in.L Black T-Slotted Aluminum

(0)No Reviews yet

Extruded aluminum are the building blocks for your ideas and innovations. Each TS15-30L extrusion can be cut up to 240'' (20 ft / 6096 mm)

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

TSLOTS 650109

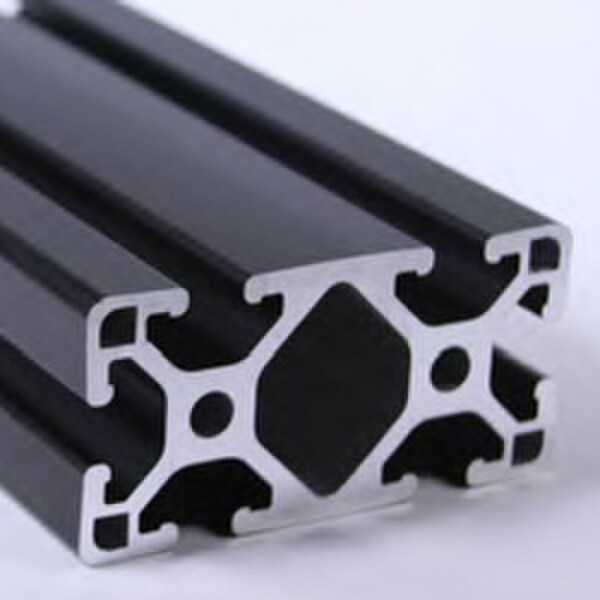

1.5” X 3.0”L Black T-Slotted Aluminum

The TSLOTS 1.5” X 3.0”L Black T-Slotted Aluminum is available to order online at FlexibleAutomationSupply.com.

Are you looking for a custom extrusion or 1.5” X 3.0”L Black T-Slotted Aluminum that is similar to the current 650109? Contact Customer Service for more information.

Back

Features & Benefits

  • Lite Fractional Extrusion
  • Black Anodized finish
  • Order by in, ft, or mm
  • Request cut lengths up to 240'' (20 ft / 6096 mm)
Back

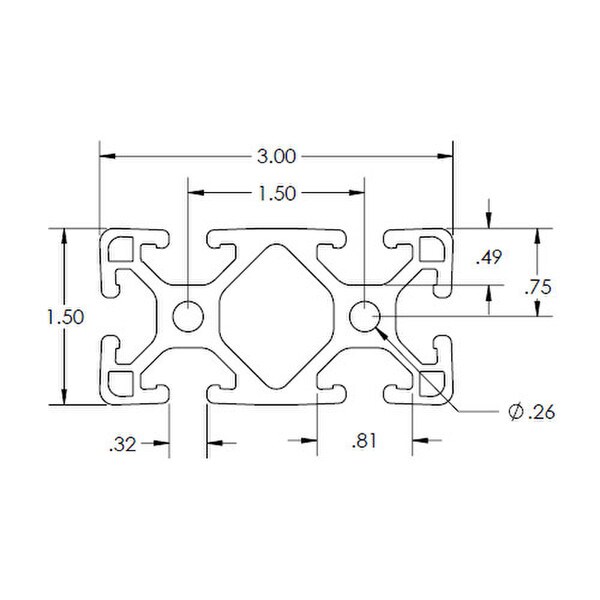

Technical Specifications

# Slots
6
Dimension C
0.32
Dimension D
Ø.26
Dimension A
1.50
Dimension B
3.00
Iy
1.431 in4 (59.563 cm4)
Model
650109
Estimated Area
1.766 in2
Type
Lite
Manufacturer
TSLOTS
Finish
Black Anodized
Length (mm)
6096
Length (In)
240
SKU
650109
Width (in)
3
Weight (lbs)
2.092 lbs/ft
Height (in)
1.5
Series
15
Length (in)
1
