650100 | 1 in. x 1 in. Black T-Slotted Aluminum

(0)No Reviews yet

Extruded aluminum are the building blocks for your ideas and innovations. Each TS10-10 extrusion can be cut up to 240'' (20 ft / 6096 mm)

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

TSLOTS 650100

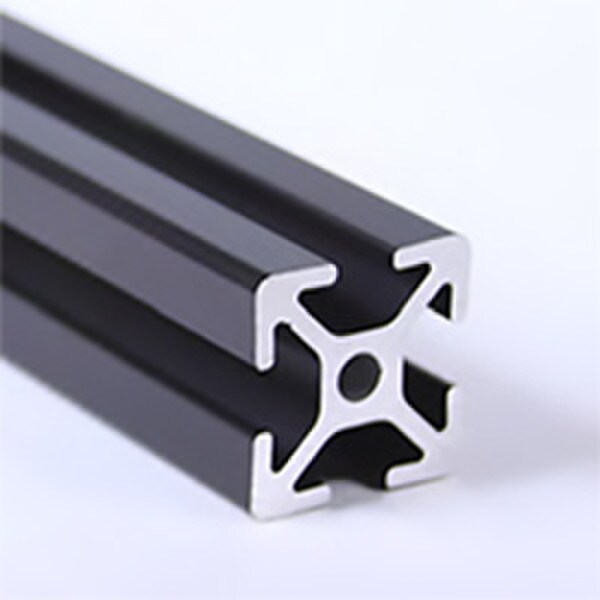

1” X 1” Black T-Slotted Aluminum

The TSLOTS 1” X 1” Black T-Slotted Aluminum is available to order online at FlexibleAutomationSupply.com.

Are you looking for a custom extrusion or 1” X 1” Black T-Slotted Aluminum that is similar to the current 650100? Contact Customer Service for more information.

Back

Features & Benefits

  • Smooth Fractional Extrusion
  • Black Anodized finish
  • Order by in, ft, or mm
  • Request cut lengths up to 240'' (20 ft / 6096 mm)
Back

Technical Specifications

# Slots
4

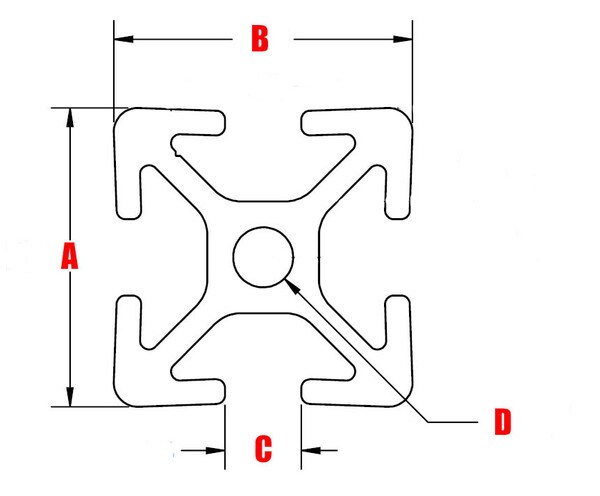

Dimension C
0.26
Dimension D
Ø.20
Dimension A
1.00
Dimension B
1.00
Iy
0.046 in4 (1.915 cm4)
Model
650100
Estimated Area
0.457 in2
Type
Smooth
Manufacturer
TSLOTS
Finish
Black Anodized
Length (mm)
6096
Length (In)
240
SKU
650100
Width (in)
1
Weight (lbs)
0.548 lbs/ft
Height (in)
1
Series
10
Length (in)
1
