Overview

TSLOTS 670071

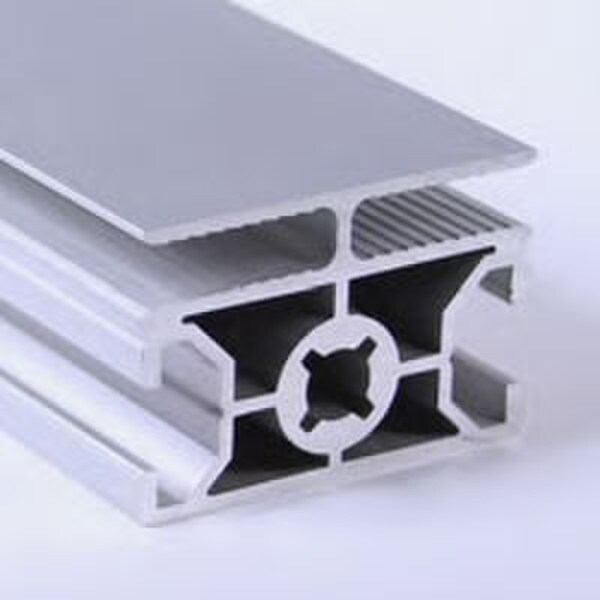

30mm x 45mm FG30 B T-Slotted Extrusion 5.6M

Spring Lock Feature

TSLOTS Extrusions have a 2° taper that spring locks fasteners as they are tightened. Fasteners will not loosen, even under heavy vibration.

Aluminum Alloy

An aluminum extrusion alloy is a predetermined mixture of one or more elements together with aluminum to be heated and hydraulically pressed through an extrusion die. Some common elements alloyed with aluminum include copper, magnesium, manganese, chromium, silicon, iron, nicklel and zinc.

TSLOTS extrsions use the 6560 or equivelent alloy. In addition to aluminum, the major alloying elements for this alloy include "Mg .25 - .45%" and "Si .35 - .8%".

Anodizing

Anodizing is an electrochemical process that thickens and toughens the naturally occurring protective oxide. The resulting finish makes a corrosion resistant extrusion. TSLOTS extrusions have an etch anodize finish that is .25 - .35 mil. thick and the anodize is a Type 2 Sulfuric.

Back

Features & Benefits

  • FG30 Modular Extrusion
  • Clear Anodized finish
  • Order by in, ft, or mm
  • Request cut lengths up to 240'' (20 ft / 6096 mm)
Back

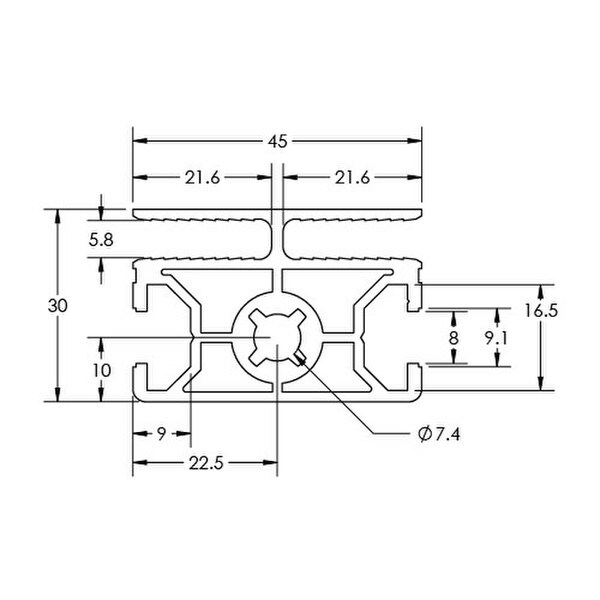

Technical Specifications

# Slots
2
Dimension C
8
Dimension D
&Oslash
Dimension A
30
Dimension B
45
Iy
0.184 in4 (7.659 cm4)
Model
670071
Estimated Area
0.738in2
Type
FG30
Manufacturer
TSLOTS
Finish
Clear Anodized
Length (mm)
6096
Length (In)
240
SKU
670071
Width (mm)
45
Series
45
Length (in)
1
Height (mm)
30
