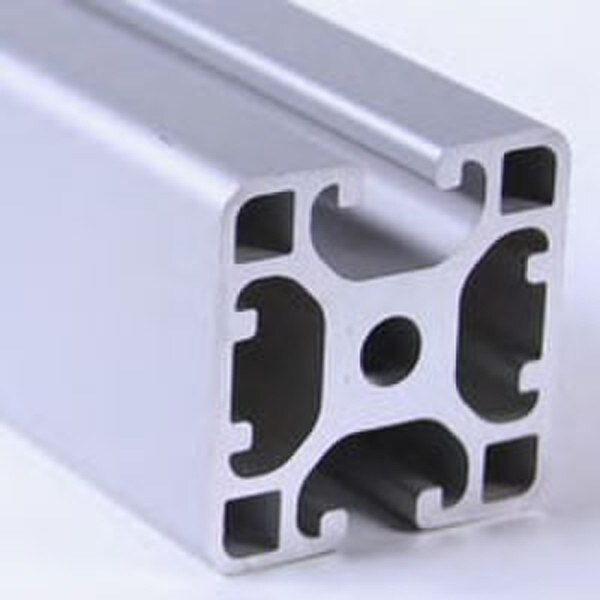

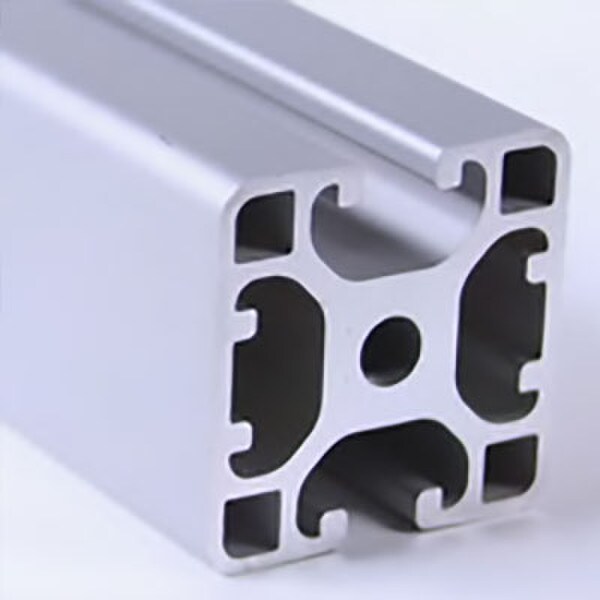

650051 | 40mm x 40mm Lite Bi Slot Opposite T-Slotted Extrusion

(0)No Reviews yet

Extruded aluminum are the building blocks for your ideas and innovations. Each TS40-40LM BISLOT OPP extrusion can be cut up to 240'' (20 ft / 6096 mm)

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

TSLOTS 650051

40mm x 40mm Lite Bi Slot Opposite T-Slotted Extrusion

Spring Lock Feature

TSLOTS Extrusions have a 2° taper that spring locks fasteners as they are tightened. Fasteners will not loosen, even under heavy vibration.

Aluminum Alloy

An aluminum extrusion alloy is a predetermined mixture of one or more elements together with aluminum to be heated and hydraulically pressed through an extrusion die. Some common elements alloyed with aluminum include copper, magnesium, manganese, chromium, silicon, iron, nicklel and zinc.

TSLOTS extrsions use the 6560 or equivelent alloy. In addition to aluminum, the major alloying elements for this alloy include "Mg .25 - .45%" and "Si .35 - .8%".

Anodizing

Anodizing is an electrochemical process that thickens and toughens the naturally occurring protective oxide. The resulting finish makes a corrosion resistant extrusion. TSLOTS extrusions have an etch anodize finish that is .25 - .35 mil. thick and the anodize is a Type 2 Sulfuric.

Back

Features & Benefits

  • Lite Bi-Slot Opposite Metric Extrusion
  • Clear Anodized finish
  • Order by in, ft, or mm
  • Request cut lengths up to 240'' (20 ft / 6096 mm)
Back

Technical Specifications

# Slots
2

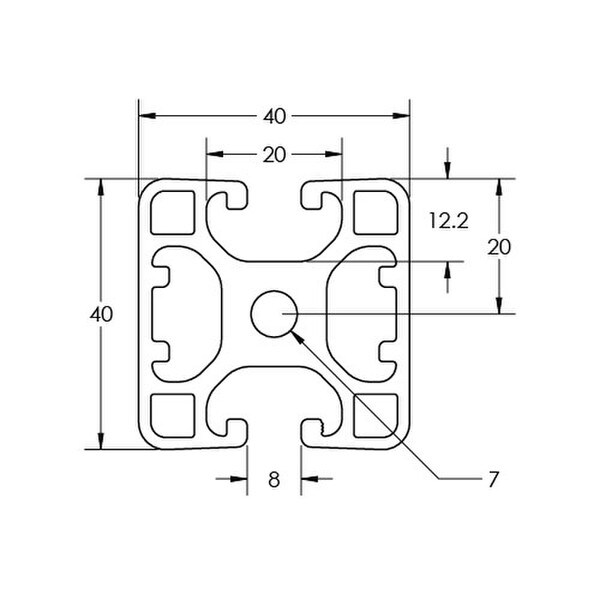

Dimension C
8
Dimension D
7
Dimension A
40
Dimension B
40
Iy
0.250 in4 (10.427 cm4)
Model
650051
Estimated Area
1.056 in2
Type
Lite Bi-Slot Opposite
Manufacturer
TSLOTS
Finish
Clear Anodized
Length (mm)
6096
Length (In)
240
SKU
650051
Weight (lbs)
1.267 lbs/ft
Width (mm)
40
Series
40M
Length (in)
1
Height (mm)
40
