PM9-1792800B | PM2800B Drill Press, 1HP 1PH 115/230V

(0)No Reviews yet
$2,457.13
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

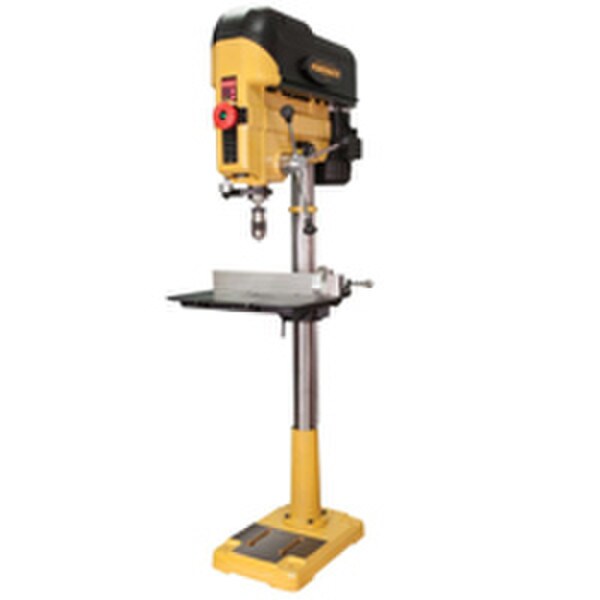

Powermatic 1792800B

Pm2800B Drill Press, 1Hp 1Ph 115/230V

Powermatic looks for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that youÂ’ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

Features:
  • Mechanical variable speed allows for full range of speed with no belt changes
  • 6" of quill travel with one revolution of the handle
  • Fence system adjustable for a perfect 90 degree relationship to the table, for rapid alignment of stock
  • Adjustable material stop makes repetitive actions accurate and quick
  • A digital RPM readout allows user to optimize the spindle speed to the application
  • Laser guides provide an accurate indication for tool point
  • Keyless chuck makes bit changes easier
  • Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
  • Two independent LED worklights eliminates shadows
  • Work table can be rotated to a full 90 degree position
  • Replaceable square table insert with leveling screws make it flush with the top of the table
  • Oversize cast iron base for added stability
  • Safety key prevents accidental starting

Technical Specifications

Type
Drill Press
Motor Type
1HP,115/230V,1PH
Swing - inches
18
Spindle Travel - inches
6
Spindle Distance to table - inches
26-5/8
Spindle Distance to base - inches
44-3/4
Chuck Distance to base - inches
40-1/2
Chuck Distance to table - inches
22-3/8
Chuck size - inches
5/8
Column Diameter - inches
3-1/8
Base Size - inches
13-1/2 x 20-1/2
Spindle Speed - rpm
250 - 3000
Table Size - inches
20-1/4 x 14
Fence Size - inches
20 x 2-3/4
Dimensions - inches
18 x 20-1/4 x 71
Weight - lbs
246
