181450 | Norbar Torque Multiplier | HT-72/27, 2,000 Nm, 1/2'' in 1'' out

(0)No Reviews yet

Best suited for environments where high torque must be applied manually with precision. It is not intended for rapid-cycle or high-volume operations, where powered torque tools may be more appropriate. A compatible calibrated torque wrench is required for optimal use.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

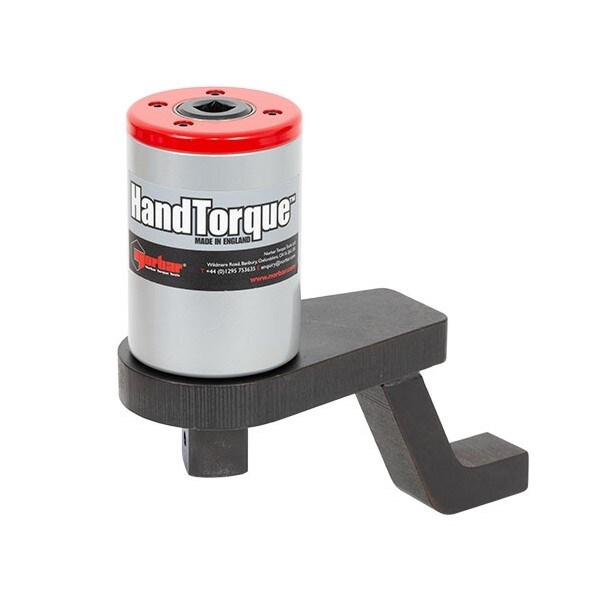

The Norbar 181450 Torque Multiplier is an industrial-grade, precision-engineered solution designed to deliver high torque output in space-constrained environments. With a 27:1 gear ratio and a maximum capacity of 2,000 Nm, this manual torque multiplier is ideal for controlled tightening and loosening of heavy-duty fasteners. Its robust design, high accuracy, and lightweight construction make it a trusted tool in critical applications across maintenance, manufacturing, and energy sectors.

Back

Features & Benefits

  • Compact dimensions allow excellent access to applications and easy, safe handling
  • Lightweight for torque capacity
  • Robust, 48 tooth Anti Wind-Up Ratchet (AWUR) contains the forces generated during tightening for safe and easy operation
  • Mean torque multiplication accuracy ±4%
Back

Technical Specifications

Manufacturer
Norbar
SKU
NOR181450
Model
181450
Min Torque (Nm)
200
Max Torque (Nm)
2000
Multiplication Ratio
27:1
Input Drive (In)
1/2'' square
Output Drive (In)
1'' square
Weight (kg)
2.9
Plate Weight
1.4 Kg
Accuracy
±4%
Ratchet Type
48-tooth Anti Wind-Up Ratchet (AWUR)
