8431 0269 17 | LUD22 HR3 | LUD22 HR3, Pneumatic Screwdriver, 1.5 - 2.8 Nm, 3600 rpm
Overview

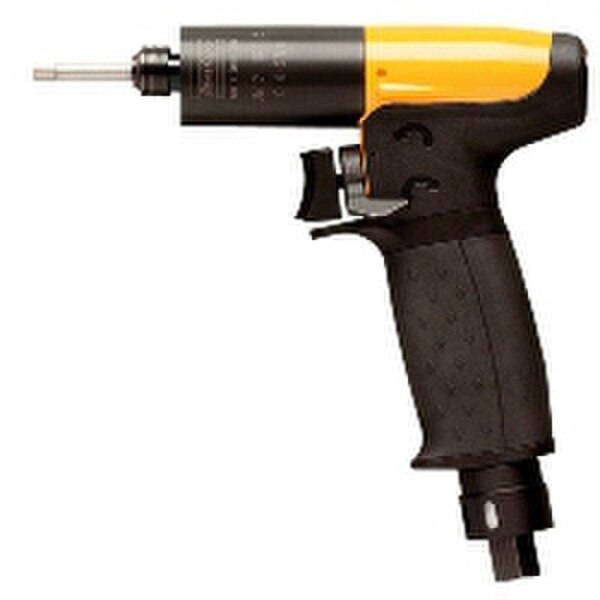

Atlas Copco 8431 0269 17
Direct Drive Screwdriver W/ Trigger Start, 13.3-24.8 In Lb
The LUD Series Screwdriver is suitable for applications with self-drilling and wood screws. The grip is designed to balance the weight of the tool evenly to reduce strain on the wrist. Key internal components are manufactured in our own plant in Sweden so we can be certain each tool is up to our quality standard. The LUD screwdriver models do not have clutches, they are direct driven tools." This means that either you release the trigger to stop, or the torque builds up to where the motor can no longer rotate.
Features:- Model with balanced grip are perfectly balanced for standard pistol grip applications
- Compact size for accessibility in cramped spaces
- Reversible
- 1/4 in female hexagon drive for bits
- Lubrication free
Technical Specifications
Model
LUD22 HR3
Stat 1
Trigger Start
Stat 2
13.3 - 24.8 In Lb
Drive size
1/4'' hex
Manufacturer
Atlas Copco
Length (mm)
125
Max Air Consumption (cfm)
17
Free Speed (RPM)
3600
SKU
8431 0269 17
Stock Code
3
Air Inlet
1/4 in.
Style
Pistol Grip
Min Torque (In Lb)
13.3
Max Torque (In Lb)
24.8
Min Torque (Nm)
1.5
Max Torque (Nm)
2.8
Max Free Speed (rpm)
3600
Weight (lbs)
1.4
Series
LUD
Min Hose Size (mm)
8
