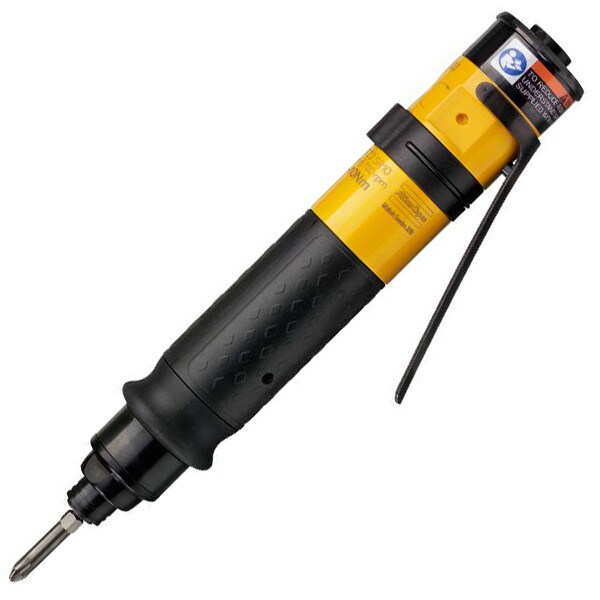

8431 0278 91 | TWIST22 PR6 | TWIST22 PR6, Inline Pneumatic Screwdriver, 2.2 - 6.5 Nm, 1600 rpm, reversible
Overview
Atlas Copco 8431 0278 91
Twist22 Pr6, Slip-Clutch Pnuematic Screwdriver W/ Push Start Trigger, 19.5-57.5 In Lb
Atlas Copco pneumatic LUM screwdrivers have a fast and accurate shut-off clutch for smooth performance and high quality tightening. They are suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness.
Features:- Superior ergonomics
- Small tool for low weight
- Fast shut-off clutch gives lower reaction torque
- Compact size for accessibility in cramped spaces
- Reversible
- Quick change chuck
- Lubrication-free
- Straight screwdrivers should be used with a torque arm for best ergonomics
Technical Specifications
Model
TWIST22 PR6
Stat 1
Push-To-Start
Stat 2
19.5 - 57.5 In Lb
Drive size
1/4'' hex
Manufacturer
Atlas Copco
Length (mm)
211
Max Air Consumption (cfm)
15
Free Speed (RPM)
1600
SKU
8431 0278 91
Stock Code
3
Air Inlet
1/4 in.
Style
Inline
Clutch Type
Stall
Min Torque (In Lb)
19.5
Max Torque (In Lb)
57.5
Min Torque (Nm)
2.2
Max Torque (Nm)
6.5
Max Free Speed (rpm)
1600
Weight (lbs)
1.7
Series
TWIST
Min Hose Size (mm)
8
