8431 0801 08 | LTP61 HR100-13 | Nutrunner, 45 - 100 Nm, 1800 rpm, 1/2'' square, reversible
Overview

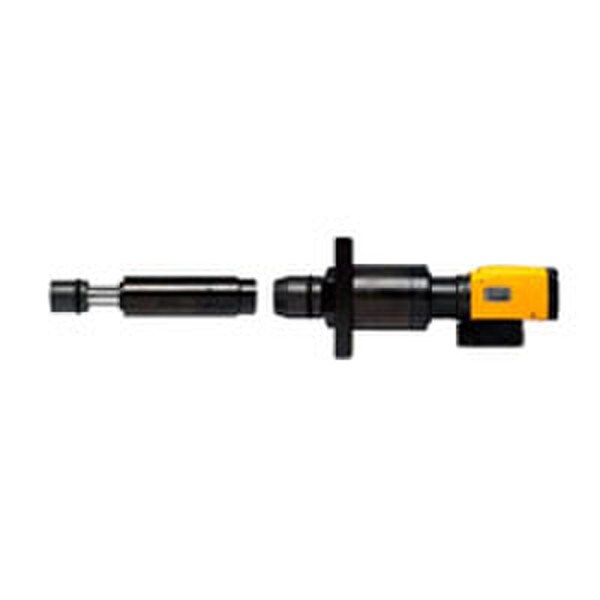

Atlas Copco 8431 0801 08
Ltp61 Hr100-13, Pistol Grip, Auto-Shut Off, Reversible Nutrunner, 40-75 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
Features & Benefits
- Superior speed and accuracy
- Ensures torque repeatability
- Extremely high torque output to weight ratio
- Twin motors and a shut-off valve
Technical Specifications
Model
LTP61 HR100-13
Stat 1
Reversible
Stat 2
35 - 75 Ft Lb
Recommended Torque Range (Ft Lb)
40-75
Drive size
1/2" square
Manufacturer
Atlas Copco
Length (mm)
235
Min Torque (Ft Lb)
35
Max Air Consumption (cfm)
42
Free Speed (RPM)
1800
SKU
8431 0801 08
Stock Code
3
Air Inlet
3/8 in.
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (In Lb)
885
Max Torque (Ft Lb)
75
Min Torque (Nm)
45
Max Torque (Nm)
100
Bolt Size - mm
M12
Direction
Reversible
Max Free Speed (rpm)
1800
Weight (lbs)
6.6
Series
LTP
Drive Type
1/2" square
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
