8431 0807 77 | [LTP61 PHR700-25-MT] 205 - 500 Ft Lb Pistol Grip
Overview

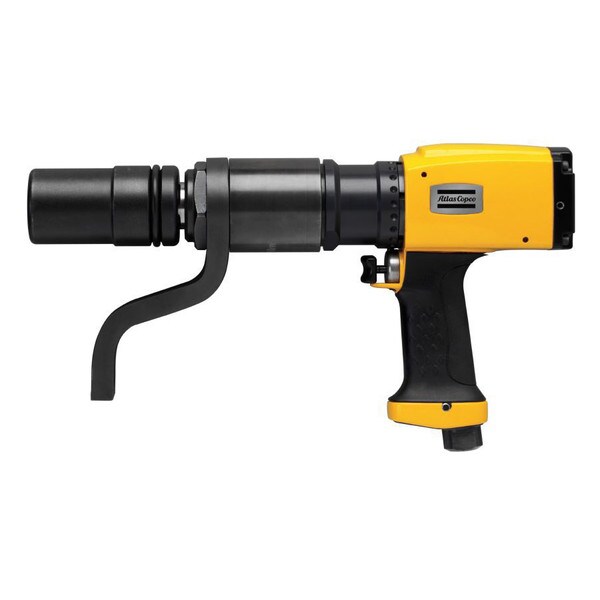

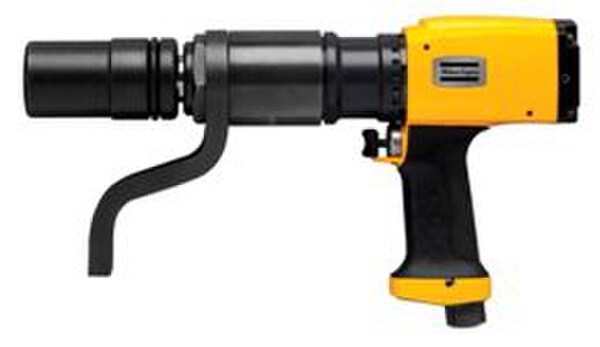

Atlas Copco 8431 0807 77
[Ltp61 Phr700-25-Mt] 205 - 500 Ft Lb Pistol Grip
- LTP61 models are equipped with twin motors and a shut-off valve to ensure that the tool shuts off when the preset torque level is reached.
- Rundown is twice as fast as the LTP51.
- High torque accuracy, non depending on air pressure feeded.
- Extremely high torque output to weight ratio.
- A reversible tool with fi xed positions for both forward and reverse.
- LTP61 PH is specially designed to handle prevailing applications, such as locking nuts.
- Special gear gives a higher changeover torque.
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
Technical Specifications
Stat 1
Reversible
Stat 2
295 - 500 - Ft Lb
Manufacturer
Atlas Copco
Length (mm)
305
Min Torque (Ft Lb)
205
SKU
8431 0807 77
Stock Code
3
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (Ft Lb)
500
Min Torque (Nm)
280
Max Torque (Nm)
680
Bolt Size - mm
M22
Direction
Reversible
Max Free Speed (rpm)
100
Weight (lbs)
10.6
