8431 0807 81 | LTP61 PHR900-25-MT | Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner w/ Multi-Torque Unit, 370-665 ft lbs
Overview

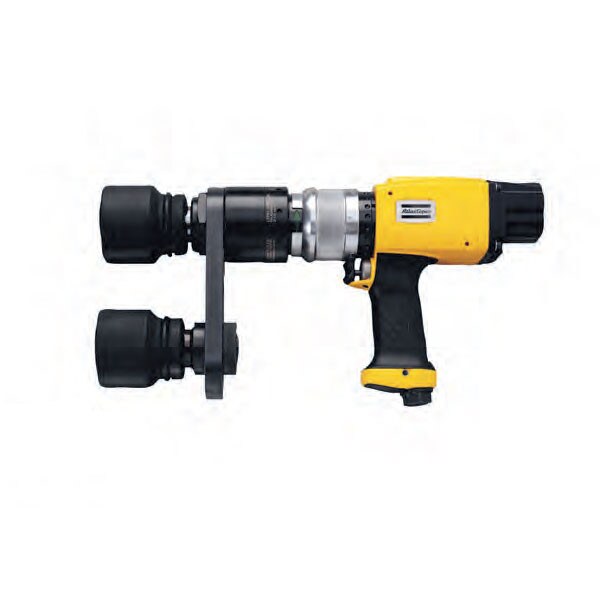

Atlas Copco 8431 0807 81
Ltp61 Phr900-25-Mt, Pistol Grip, Auto-Shut Off, Pnuematic Nutrunner W/ Multi-Torque Unit, 370-665 Ft Lbs
With the LTP Series range of pistol grip nutrunners from Atlas Copco you get the highest possible torque and speed in relation to the weight of the tool. Fast, accurate and highly operator friendly, the tools are reversible for maximum flexibility. LTP61 PH is specially designed to handle prevailing torque applications, such as locking nuts
Features:- Special gear gives a higher changeover torque.
- The Multi Torque selector makes it possible to preset up to four different shut-off levels
- Fast rundown motor handles most of the rundown before the slower but stronger tightening motor is used.
- Reversible tool with fixed positions for both forward and reverse
Technical Specifications
Model
LTP61 PHR900-25-MT
Stat 1
Reversible
Stat 2
370 - 665 - Ft Lb
Recommended Torque Range (Ft Lb)
370-665
Drive size
1'' square
Manufacturer
Atlas Copco
Length (mm)
305
Min Torque (Ft Lb)
370
Max Air Consumption (cfm)
42
Free Speed (RPM)
80
SKU
8431 0807 81
Stock Code
3
Air Inlet
3/8 in.
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (In Lb)
7966
Max Torque (Ft Lb)
665
Min Torque (Nm)
500
Max Torque (Nm)
900
Bolt Size - mm
M24
Direction
Reversible
Max Free Speed (rpm)
80
Weight (lbs)
10.6
Drive Type
1 in. square
