Overview

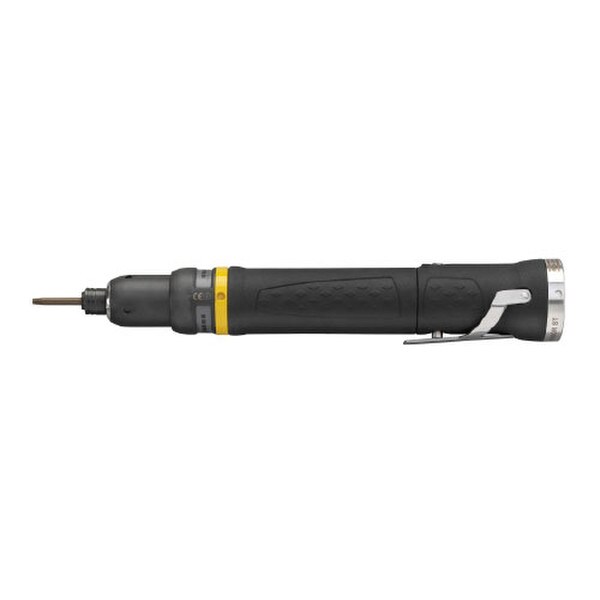

Atlas Copco 8436 4220 16

Etd Sr Electric Inline Nutrunner, 2.6-11.8 Ft Lbs


Atlas CopcoÂ’s unique Tensor motors give the Tensor range outstanding spindle speeds and, thus, help you achieve lower cycle times in your operation. Exceptional ergonomics in terms of balance, grip and low weight make the tools a favorite of the operators and increase individual productivity. All Tensor tools are equipped with LEDÂ’s that will indicate the tightening result, green light for tightening OK and red light for NOK. At Atlas Copco we believe that quality is the road to lowest cost of operation over time. A maintained Tensor tool produces the same performance year after year at minimum and predictable costs while ensuring highest possible uptime. The latest generation of Tensor tools, Tensor STR, take ergonomics and productivity to a new level.

Features:
  • Extremely fast, compact and easy to operate, reducing operation cycle times
  • ESD certified, eliminating electrostatic discharge and reducing costs during assembly
  • Easy to configure function button for operator interaction increasing operation flexibility
  • Configurable LEDÂ’s and an integrated speaker for indicating results via audio signals for operator feedback, thus increasing assembly quality
  • Ideal for hand-held and fixtured applications

Technical Specifications

Model
ETD SR21-16-I06-PS
Recommended Torque Range (Ft Lb)
2.6-11.8
Manufacturer
Atlas Copco
Length (mm)
276
Min Torque (Ft Lb)
2.6
Free Speed (RPM)
1460
SKU
8436 4220 16
Stock Code
3
Style
Inline
Max Torque (In Lb)
142
Max Torque (Ft Lb)
11.8
Min Torque (Nm)
3.5
Max Torque (Nm)
16
Max Free Speed (rpm)
1460
Weight (lbs)
2.2
Weight (kg)
1.0
