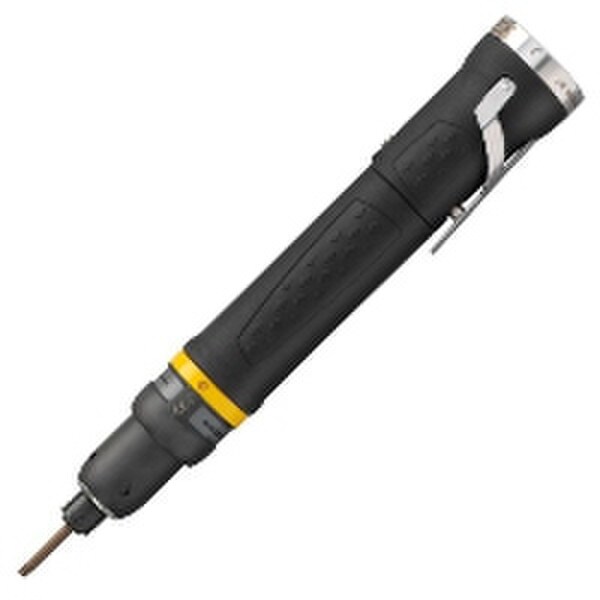

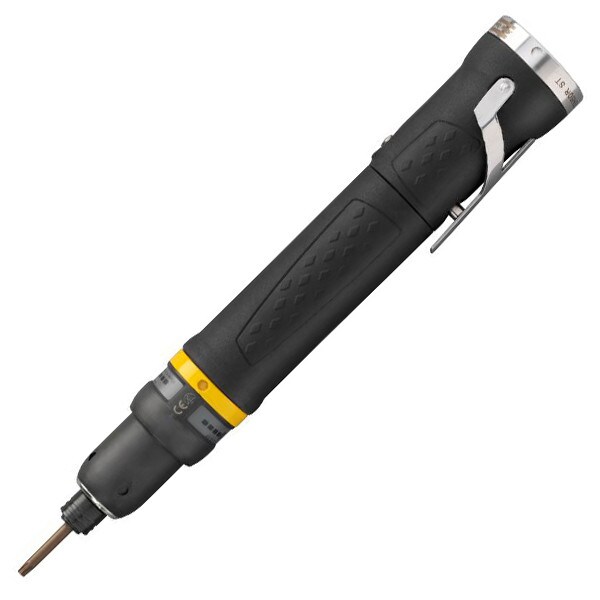

8436 6220 07 | ETD STR21-07-I06-PS, Inline Electric Screwdriver, Push Start and front lights, 1-5.2 ft lbs
Overview
Introducing the Atlas Copco ETD STR21-07-I06-PS Inline Electric Screwdriver, a powerful and versatile assembly tool designed to revolutionize your fastening processes. Engineered by Atlas Copco, a leading manufacturer of industrial tools, this electric screwdriver combines precision, efficiency, and durability to meet the demands of even the most challenging assembly tasks.
- Min Torque(ft-lb): 1
- Max Torque(ft-lb): 5.2
- Min Torque(Nm): 1.5
- Max Torque(Nm): 7
- Drive Size: Inline
- Start Type: Push Start
Features & Benefits
- Inline Design: The ETD STR21-07-I06-PS features an inline configuration, providing improved access in confined spaces and allowing for greater maneuverability during assembly processes.
- Push Start and Front Lights: Equipped with a convenient push start mechanism and integrated front lights, this electric screwdriver ensures effortless operation and enhanced visibility in dimly lit work environments.
- Robust Construction: Built to withstand the rigors of industrial use, this electric screwdriver features a durable construction that guarantees long-lasting performance and reliability.
- Versatile Torque Range: With a torque range of 1-5.2 ft lbs (1.5-7 Nm), the ETD STR21-07-I06-PS adapts to a wide variety of fastening applications, providing precise control and accuracy.
Technical Specifications
Manufacturer
Atlas Copco
Length (mm)
259
Min Torque (Ft Lb)
1
SKU
8436 6220 07
Stock Code
3
Style
Inline
Max Torque (Ft Lb)
5.2
Min Torque (Nm)
1.5
Max Torque (Nm)
7
Max Free Speed (rpm)
2090
Weight (lbs)
1.9
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the 8436 6220 07?
What type of application is the 8436 6220 07 best suited for?
Electric Screwdrivers like the 8436 6220 07, are most commonly used for medium to heavy assembly applications where precise torque control is required. The 8436 6220 07 is an Inline model.
How do I set the torque on the 8436 6220 07?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the 8436 6220 07 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
