959965003 | Grayscale Smart Camera, T49, 2448 x 2048, 15 fps, 2/3 in.
Overview
Datalogic 959965003

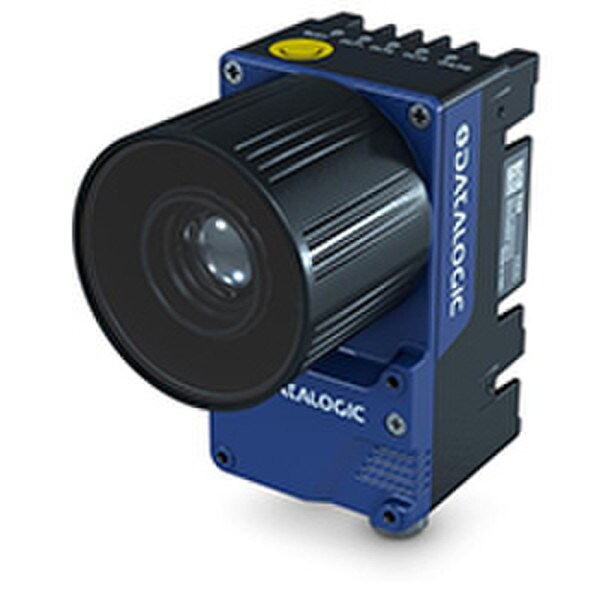

Camera, IMPACT T49, Grayscale, 2448 x 2050, 15 FPS, 2/3?ö CCD
The new T4x-Series smart camera provides customers with outstanding performance in an industrialized and compact package. Equipped with a powerful 1.1 GHz processor, the T4x-Series performance is exceptional in value and functionality. The T-Series comes in 3 different camera resolutions, VGA, 2 Mega-Pixel and 5 Mega-Pixel all in a sealed, industrially hardened enclosure for maximum protection. Combined with Impact software, the new generation T-series delivers the most rugged and versatile smart camera solution in the market today.
Features:- High performance Smart Camera series
- Right-angle IP67 rated enclosure
- Up to 5Mpix grey-scale imager
- Built-in digital I/Os and Serial interface
- Gbit Ethernet Port
Features & Benefits
- IP67 Rated Enclosure with sealed connectors
- Three High Quality CCD Resolution Sensor Options
- Complete Impact software toolset for ultimate programming flexibility
- Can be run with or without an operator interface
Technical Specifications
RAM
512 MB
Storage
256 MB Flash
Software
T49
Model
959965003
Frame rate
15
Type
Smart Camera
Manufacturer
Datalogic
Operating Temperature Range
0 to 50 °C (32 to 122 °F)
Permissible relative humidity (%)
0 to 90%
SKU
959965003
Dimensions
123 x 65 x 101 mm
CPU
1.1 GHz TI Da Vinci
Pixel Size
3.4 um
Imager Size
2/3 in.
Power supply
10 - 30 VDC
Series
T
Resolution
2448 x 2048 CCD
Technical Documents
T4x Series Hardware Guide (PDF)
Impact Machine Vision Documentation (ZIP)- Impact Software GAMP Compliance Guide (PDF)
- Impact Hardware and Software FDA Title 21 CFR Part 11 Compliance Guide (PDF)
- Machine Vision Reference Guide (PDF)
- T4x Series Smart Camera Brochure (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
