985110038 | VLASE 1109-1042 DPSS IR System | VLASE - IR10: 1064 Solid State Marker 10W w/out F-theta
Overview

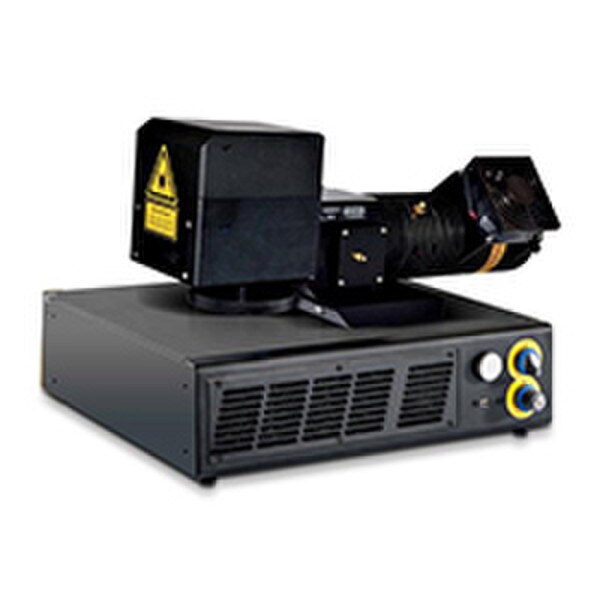

Datalogic 985110038 | VLASE 1109-1042 DPSS IR System
VLASE - IR10: 1064 Solid State Marker 10W w/out F-theta
The NEW VLASE is a complete family of Solid State laser marking products available in three different wavelengths: 1064, 532, 355 nm, with power up to 20 W.The New VLase family, based on the unified ONE.RACK control platform, is available with compact, air cooled high performance, high peak power Solid State laser sources, suitable for demanding industrial applications and hard-to-engrave materials.
Features:- Extremely easy to integrate and configure
- Excellent beam quality
- High peak power and short pulse width for excellent marking on a broad range of materials
- 3 or 5 meters detachable optical fiber
- High stability thermoplastic marking
- High reflectivity metal marking in electronics and automotive industries
- Thin film and coating ablation
Technical Specifications
Integration
Up to 4 mechanical axis driving capabilities (stepper motor), Up to 10 digital inputs and 10 digital output fully programmable dedicated connectors Encoder and Photocell
Aiming & Focus Beam
Semiconductor Laser - 630 – 670 nm
Pulse Energy (max)
0.48 mJ @10kHz
Peak power (max)
32 kW @ 10KHz
Model
VLASE 1109-1042 DPSS IR System
Nominal Power
10W
Interface
Ethernet, RS232, USB
Manufacturer
Datalogic
Temperature Range
5°C to 40°C (41°F to 104°F)
SKU
985110038
Power supply
100 - 240 VAC, 50-60 Hz
Wavelength
1064 nm
Technical Documents
Datalogic VLASE IR Series Solid State Laser Markers User Manual (PDF)- Datalogic VLASE Series Solid State Laser Markers Brochure (PDF)
- Datalogic Laser Marking Reference Guide (PDF)
- Datalogic Lighter Laser Editor (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
