985130003 | ULYXE 1066-1010 DPSS IR System | Ulyxe 6W@1064 w/out F-Lens
Overview
Datalogic 985130003 | ULYXE 1066-1010 DPSS IR System
Ulyxe 6W@1064 w/out F-Lens

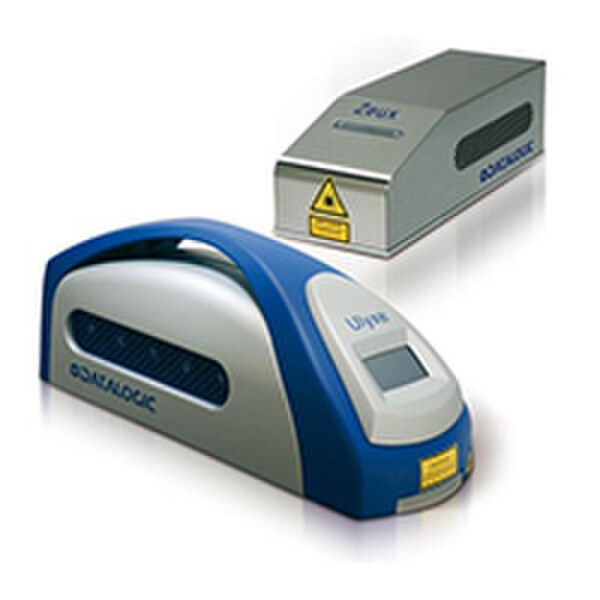

The Ulyxe product line provides ideal laser marking solutions for both stand-alone applications and industrial production lines. Integrated 6.5W DPSS laser marking system, due to its cost-effective, innovative design, Ulyxe becomes the first choice in marking solutions by providing the best price/ performance for plastic and metal marking applications.
Features:- Extrerme compactness offering all the most advanced technological concepts
- Best price/performance ratio in the laser marking world
- Air cooled with ultra-compatc design
- Integrated scanning head, digital control and monitoring functions
- Label Marking
- DPM (Direct Part Marking)
Technical Specifications
Laser Source
Q-switched DPSS
Modulation
15 kHz ÷ 200 kHz
Aiming & Focus Beam
Semiconductor laser 635 nm
Model
ULYXE 1066-1010 DPSS IR System
Emission
Pulsed
Nominal Power
6 W ± 5% (@ 50kHz)
Interface
USB 2.0, RS232 for diagnostic
Manufacturer
Datalogic
Warranty
2 Year Warranty
Temperature Range
15°C to 35°C
SKU
985130003
Power supply
24 VDC 13A
Wavelength
1064 nm
Technical Documents
Datalogic ULYXE Series Solid State Laser Marker User Manual (PDF)- Datalogic ULYXE Series Solid State Laser Markers Brochure (PDF)
- Datalogic Laser Marking Reference Guide (PDF)
- Datalogic Lighter Laser Editor (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
