985140014 | EOX 6102-1540 CO2 System | EOX CO2 MARKER 10W F200 lens 140mm x 140mm

(0)No Reviews yet
$21,816.00
$24240
$2424
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

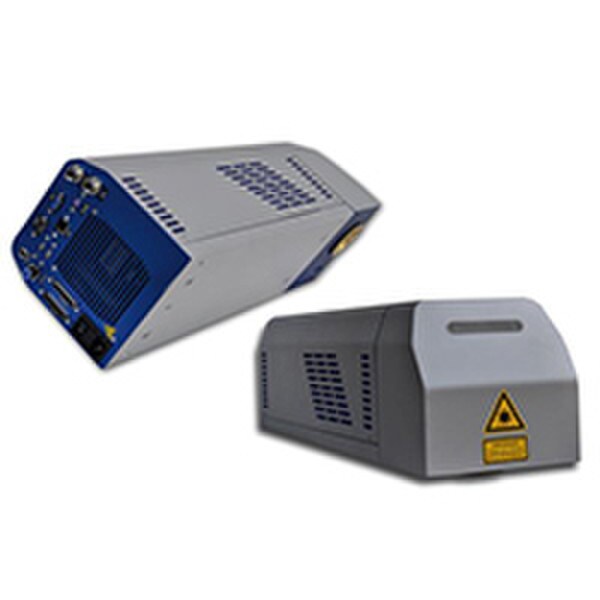

Datalogic 985140014 | EOX 6102-1540 CO2 System

EOX CO2 MARKER 10W F200 lens 140mm x 140mm

Extremely reliable, Datalogic EOX family offers high quality permanent marking on a widest range of material. Its configuration offers extreme flexibility for the integration both in production line as well as in stand-alone systems. EOX embedded controller and the advanced features of its marking platform, EOX offers permanent coding and marking opportunity in a variety of applications. The eox is available at 10 W and 30 W

Features:
  • Flexible configuration and application
  • Easy to install and integrate
  • Advance embedded controller
  • State of the art marking platform
Applications:

Datalogic EOX family marks a wide range of objects and materials: paper, cardboard, textiles, other organic and painted/coated materials

EOX laser sources allow Datalogic Automation to offer unmatched permanent clean marking in new market segments, where it can even compete with the traditional ink jet solution in terms of ROI and performance"

Back

Technical Specifications

Laser Source
CLASS 4, CO2 sealed laser tube
Integration
Up to 4 mechanical axis driving capabilities (stepper motor), Up to 10 digital inputs and 10 digital output fully programmable, 1 dedicated connector for dual line high resolution encoder and 1 dedicated connector for photocell
Aiming & Focus Beam
3mW @ 635 nm
Model
EOX 6102-1540 CO2 System
Nominal Power
10W
Manufacturer
Datalogic
Warranty
2 Year Warranty
Temperature Range
15°C to 35°C
SKU
985140014
Dimensions
180 x 185 x 634 mm
Power supply
100 - 240 VAC, 50-60 Hz
Weight (lbs)
37.40
Wavelength
10.6 ?m
