AE-4520ESD | Inline ESD Electric Screwdriver, 1.3 - 8.7 in lbs, 720 rpm
Overview

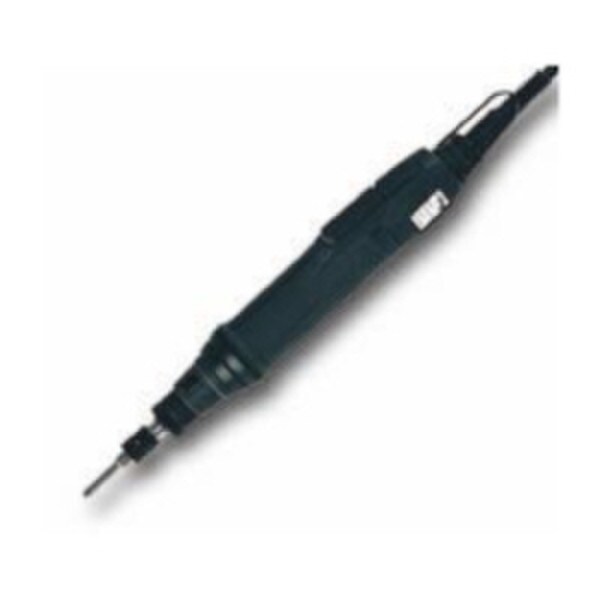

Introducing the AIMCO AE-4520ESD Inline ESD Electric Screwdriver, a high-speed, ergonomic, and convenient tool designed for use in ESD-safe environments. With its slip clutch, this screwdriver provides precise torque control, making it ideal for a wide range of applications.
- Min Torque(In Lb): 1.3
- Max Torque(In Lb): 8.7
- Weight(Lbs): 0.93
- Length(In): 11.5
- Height(In): 9.4
- Drive Size: 1/4'' hex
Requires a Controller/Power Supply AE-224PS sold separately.
Features & Benefits
- ESD Safe: The AE-4520ESD is specifically designed for use in ESD-safe environments, ensuring the safety of sensitive electronic components.
- Ergonomic Design: The AE-4520ESD boasts an ergonomic design that minimizes user fatigue, allowing for extended use without discomfort.
- High-Speed Performance: The AE-4520ESD offers impressive high-speed performance, enabling users to complete fastening tasks quickly and efficiently.
- Accurate Torque Control: Equipped with a slip clutch, this electric screwdriver delivers precise torque control, ensuring accurate and consistent fastening results.
Technical Specifications
Min Torque - In Lbs
1.3
Max Torque - In Lbs
8.7
Min Torque - Kgf Cm
1.5
Max Torque - Kgf Cm
9.4
Max Torque - Nm
0.93
Start Type
Lever Start
Clutch Type
Auto Shut Off
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
720
Length - Inches
8
Type
ESD Electric Screwdriver
ESD Compliant
Yes
Power supply
AE-24PS or AE-2045DPS
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the AE-4520ESD?
What type of application is the AE-4520ESD best suited for?
Electric Screwdrivers like the AE-4520ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required. The AE-4520ESD is an Inline model with a Auto Shut Off clutch.
How do I set the torque on the AE-4520ESD?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the AE-4520ESD have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
