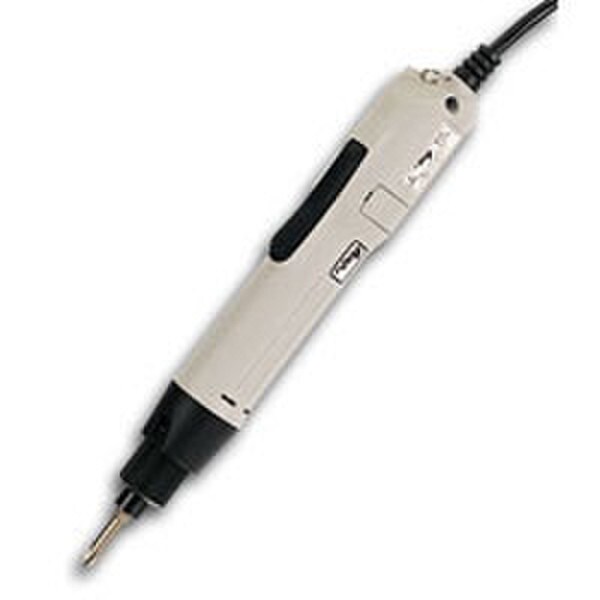

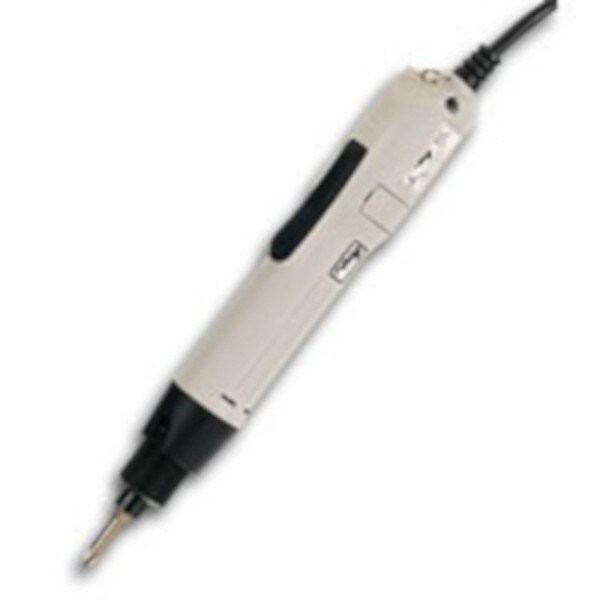

AE-2015 | Inline Electric Screwdriver, 4.3 - 21.7 in lbs, 1000 rpm
- 360°
- Overview
- Features & Benefits
- Technical Specifications
- Technical Documents
- Frequently Asked Questions
Overview
Introducing the AIMCO AE-2015 Inline Electric Screwdriver, a powerful and versatile tool designed to streamline your assembly operations. With its impressive torque range of 4.3 - 21.7 in lbs and a speed of 1000 rpm, this electric screwdriver delivers high-speed performance, ergonomics, and convenience in an ESD-safe package.
- Min Torque(In Lb): 4.3
- Max Torque(In Lb): 21.7
- Weight(Lbs): 1.69
- Length(In): 2.3
- Height(In): 18
- Drive Size: 1/4'' hex
Features & Benefits
- High-Speed Performance: The AE-2015 boasts a speed of 1000 rpm, ensuring efficient and rapid fastening operations.
- Ergonomic Design: The AE-2015's ergonomic design minimizes operator fatigue, promoting comfort during extended use.
- ESD-Safe: The AE-2015 is ESD-safe, making it suitable for use in sensitive electronic assembly environments.
- Accurate Torque Control: The slip clutch mechanism ensures precise torque control, guaranteeing consistent and accurate fastening results.
Technical Specifications
Min Torque - In Lbs
4.3
Max Torque - In Lbs
21.7
Min Torque - Kgf Cm
2.3
Max Torque - Kgf Cm
18
Max Torque - Nm
1.69
Start Type
Lever Start
Clutch Type
Slip
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
1000
Length - Inches
9.2
Type
Electric Screwdriver
Technical Documents
AIMCO AE 2015 Parts Breakdown (pdf)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the AE-2015?
What type of application is the AE-2015 best suited for?
Electric Screwdrivers like the AE-2015, are most commonly used for medium to heavy assembly applications where precise torque control is required. The AE-2015 is an Inline model with a Slip clutch.
How do I set the torque on the AE-2015?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the AE-2015 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
