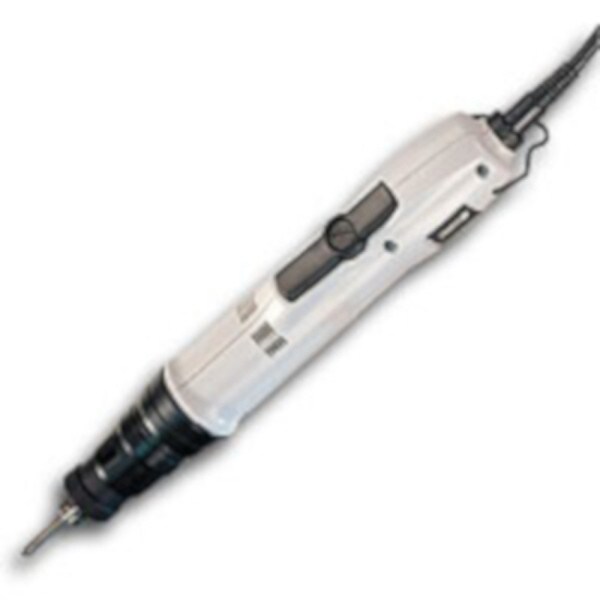

AE-7010 | Inline Electric Screwdriver, 6.1 - 17.4 in lbs, 750 rpm

(0)No Reviews yet
$556.13
$706
$149.87
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Introducing the AIMCO AE-7010 Inline Electric Screwdriver, a powerful and versatile assembly tool designed to revolutionize your fastening processes. Engineered with cutting-edge technology, this electric screwdriver combines high-speed performance, ergonomic design, and accurate torque control to streamline your assembly tasks.

  • Min Torque(In Lb): 6.1
  • Max Torque(In Lb): 17.4
  • Weight: 1.97 lbs
  • Length: 7 in
  • Height: 20 in
  • Drive Size: 1/4'' hex

Requires a Controller/Power Supply AE-278PS sold separately.

Back

Features & Benefits

  • High-Speed Performance: With a speed of 750 rpm and a torque range of 6.1 to 17.4 in lbs, the AE-7010 delivers fast and accurate fastening for a wide range of applications.
  • Ergonomic Design: The lightweight and well-balanced construction of the AE-7010 reduces operator fatigue, ensuring комфорт and productivity during extended use.
  • ESD Safe: The AE-7010 is ESD safe, making it suitable for use in sensitive electronic assembly environments.
  • Accurate Torque Control: The integrated slip clutch mechanism provides precise torque control, preventing overtightening and ensuring consistent fastening results.
Back

Technical Specifications

Min Torque - In Lbs
6.1
Max Torque - In Lbs
17.4
Min Torque - Kgf Cm
7
Max Torque - Kgf Cm
20
Max Torque - Nm
1.97
Start Type
Lever Start
Clutch Type
Auto Shut Off
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
750
Length - Inches
9.3
Type
Electric Screwdriver
Power supply
AE-278PS
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the AE-7010?

The AE-7010 has a torque range from 6.1 to 17.4 in lbs.

Did you know that the average max torque range of an Electric Screwdriver can range from 27 - 45 in lbs?

Electric Screwdrivers like the AE-7010, are most commonly used for medium to heavy assembly applications where precise torque control is required. The AE-7010 is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
