AE-6300M | Inline Precision Electric Screwdriver, 1 - 5.5 in lbs, 550 rpm
Overview

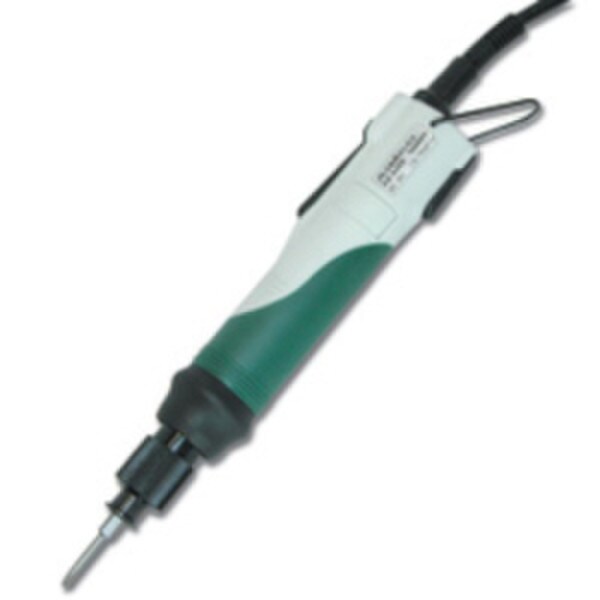

Introducing the AIMCO AE-6300M Inline Precision Electric Screwdriver, a remarkable assembly tool that combines precision, speed, and ergonomic design. Manufactured by AIMCO, this electric screwdriver is engineered to streamline your fastening tasks and enhance productivity in various assembly applications.
- Min Torque(In Lb): 1
- Max Torque(In Lb): 5.5
- Weight(Lbs): 0.35
- Length(In): 4.3
- Height(In): 0.4
- Width(In): 5
Requires a Controller/Power Supply APM-30 sold separately.
Features & Benefits
- High-Speed Performance: With a remarkable speed of 550 RPM, the AE-6300M enables fast and efficient fastening, reducing production time and increasing overall productivity.
- Accurate Torque Control: Equipped with a slip clutch, this electric screwdriver delivers precise torque control within a range of 1 to 5.5 in lbs, ensuring accurate and consistent fastening results.
- ESD Safe: The AE-6300M is ESD safe, making it suitable for use in sensitive electronic assembly environments where static discharge can damage components.
- Ergonomic Design: The AE-6300M boasts a lightweight and well-balanced design, minimizing user fatigue during prolonged use. Its ergonomic handle provides a comfortable grip, reducing the risk of hand strain or discomfort.
Technical Specifications
Min Torque - Ft Lbs
0.35
Max Torque - Ft Lbs
4.3
Min Torque - In Lbs
1
Max Torque - In Lbs
5.5
Min Torque - Nm
0.4
Max Torque - Nm
5
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
550
Type
Precision Electric Screwdriver
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the AE-6300M?
What type of application is the AE-6300M best suited for?
Electric Screwdrivers like the AE-6300M, are most commonly used for medium to heavy assembly applications where precise torque control is required. The AE-6300M is an Inline model.
How do I set the torque on the AE-6300M?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the AE-6300M have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
