ARC Mate 50iD/7L | 6 Axis, 7 kg Arc Welding Robot, 911 mm reach
Overview

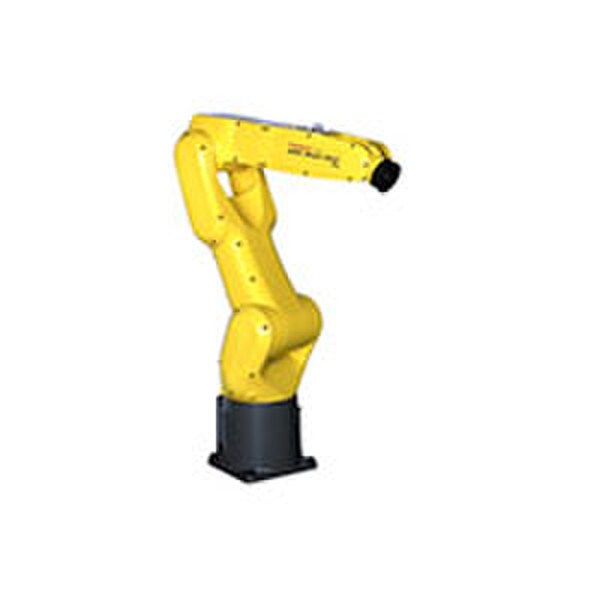

FANUC ARC Mate 50iD/7L
6 Axis, 7 kg Arc Welding Robot, 911 mm reach
The FANUC ARC Mate 100iC / 120iC series robot is specifically designed for arc welding applications. It features a hollow wrist for torch cable integration and highest motion performance for its class.
Features:- A rigid arm combined with advanced servo technology enable maximum speed and acceleration performance. This reduces cycle time by up to 15%.
- A unique wrist axis drive mechanism encased witihin the slimmest wrist available in an ARC robot allows for operation in narrow spaces and high density installation.
- Smooth torch cable routing and easy maintenance through a hollow forearm provides excellent cable management with stable wire feeding for high performance welding.
- The robot can integrate weld power cables in addition to wire feeder control cables and assist gas hoses.
- Enhanced wrist load capacity allows support of various torch tools such as sensor units, Servo Torch and tandem torch.
- Various optional intelligent functions are available, such as iRVision, collision detection and coordinated motion.
Features & Benefits
- Lightweight slim arm construction increases speed and improves part and tooling accessibility.
- Flip over capability for an even larger work envelope
- Best in class reach versus stroke
Technical Specifications
Application
Arc Welding, Material Removal
Model
ARC Mate 50iD/7L
Manufacturer
FANUC
SKU
ARC Mate 50iD/7L
Reach
911 mm
Installation
Floor, upside-down, wall and angle mount
No. of Axis
6
Repeatability
0.03 mm
Payload
7 kg
Weight (kg)
27
Technical Documents
FANUC Arc Mate 100iC and 120iC Arc Welding Robots Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
