ATC Torque Cube

(0)No Reviews yet

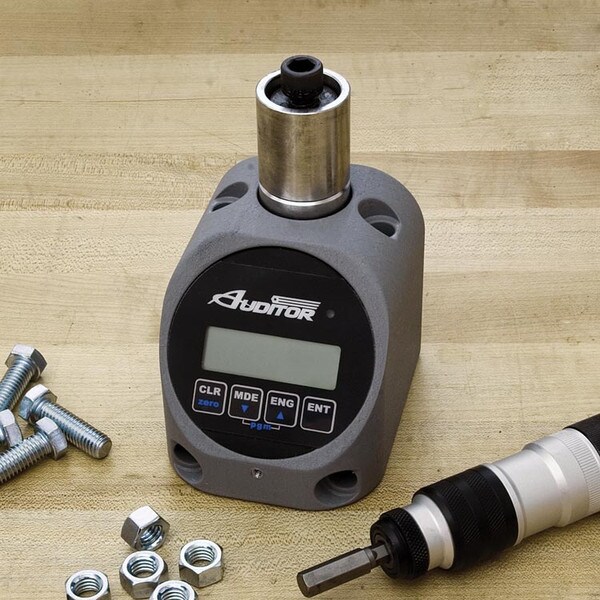

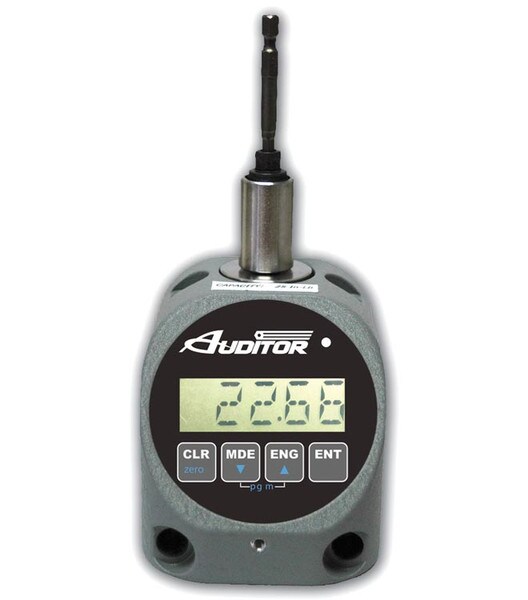

The Auditor Torque Cube (ATC) is a compact, versatile desktop tester and provides a multitude of capabilities.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Features:
  • The “CUBE” is a great entry level tester that packs many features into a small portable package
  • Versatile mounting design makes testing of pistol or inline tools simple
  • Bevel washer joint kits allow for precise simulation of the application joint characteristics
  • Simple, easy-to-use portable tester
  • Intuitive Auditor Series menu structure for quick start-up
  • Bidirectional accuracy of ±1% of indicated reading within top 90% of full scale
  • Eight (8) available engineering units: oz-in, lb-in, lb-ft, Nm, cNm, kgf-cm, gf-cm, kgf-m
  • 3 modes of operation: Track, Peak and 1st Peak
  • Selectable power tool filtering speeds:   125Hz, 250Hz, 500Hz, 1000Hz and 1500Hz
  • RS-232 output
  • NiMh rechargeable batteries provide at least 8-10 hours of continuous use
  • For testing power tools, click, dial and digital wrenches
*Unit accuracy is +/-.5% of indicated reading for the top 90% of full scale
Back

Features & Benefits

  • Peak, first peak and track modes
  • Bi-directional use and accuracy
  • shipped with a charger power cord, hex-allen drive, and bolting template
  • Multiple engineering units
Back

Technical Specifications

Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Ratings & Reviews

No reviews available

Be the first to Write a Review

Models Available
