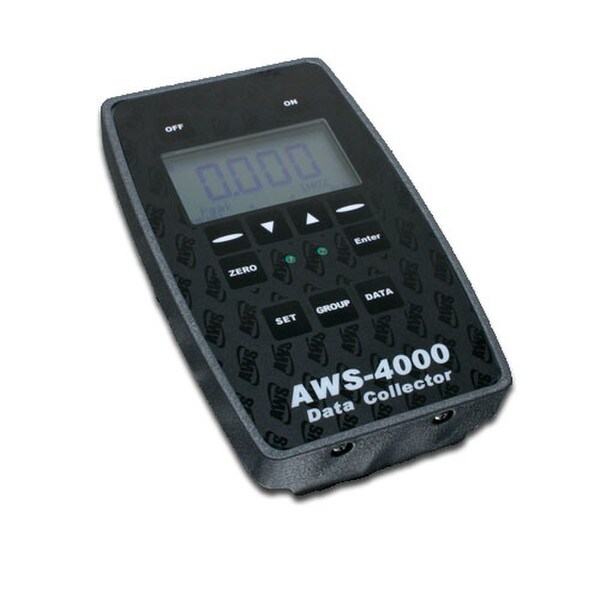

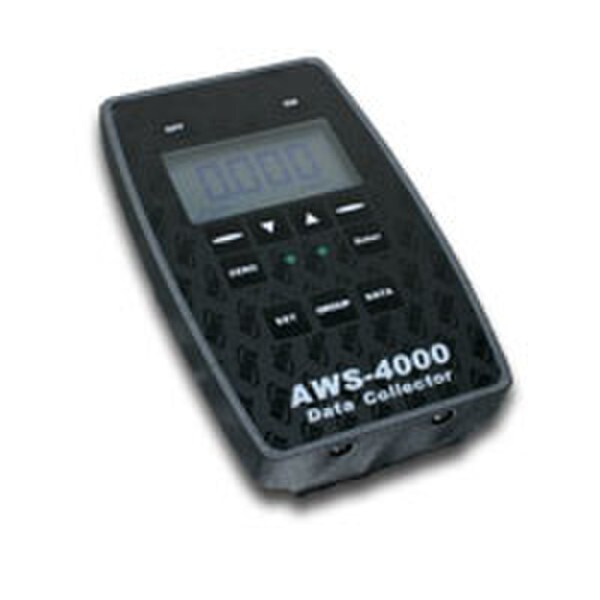

AWS 4000 Portable Series Intellect Collection System

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Features:
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • 3 modes of operation: Track, Peak and 1st Peak with visual limit alarms.
  • Memory storage for 8000 data points.
  • RS-232 output.
  • NiMH rechargeable batteries provide 8-10 hours continuous use.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Date and Time.
  • Alphanumeric Serial Number Input.
  • Serial Number association by Group.

    Transducer Ranges
    ModelRangeDrive SizeRun-Down Fixture
    ITIO-1010 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITIO-5050 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITIO-5050 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITIO-100100 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITI-1010 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITI-2525 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITI-5050 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr.1/4"Included
    ITI-100100 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr.3/8"Included
    ITI-250250 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr.3/8"Included
    ITI-500500 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr.3/8"Included
    ITF-100100 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr.3/8"Included
    ITF-150150 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr.1/2"Optional
    ITF-250250 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr.1/2"Optional
    ITF-600600 Lbf. Ft. Intellect Transducer with Bench Stand, 3/4" Dr.1/2"Optional
    ITF-10001000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr.3/4"Optional
    ITF-20002000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr. (w/o Bench Stand)
    ITF-30003000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand)
    ITF-50005000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand)

Back

Features & Benefits

  • Accuracy ±0.5% bidirectional
  • Units: Oz.in., Lb.in., Lb.ft., Nm,cNm, KgfCm, gfCm, Kgfm
  • From $1995
  • Modes: Track, Peak, or First Peak
