Advanced Witness Series

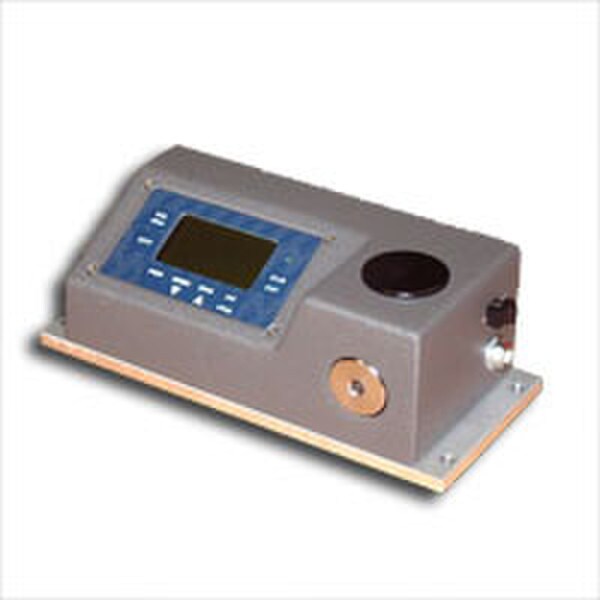

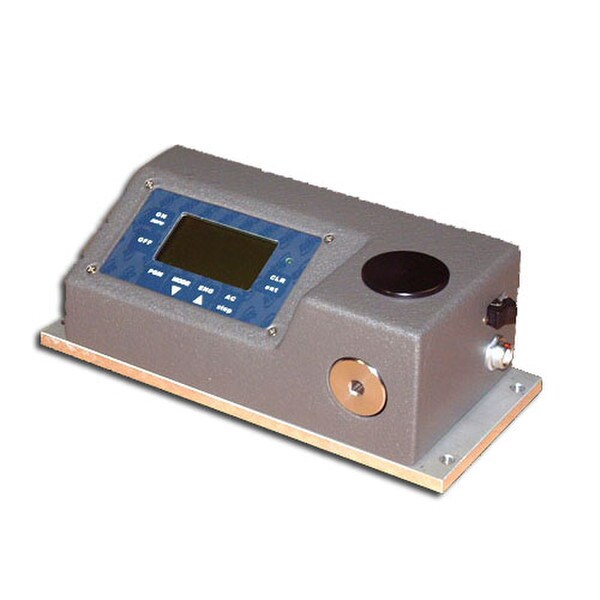

AWS 5000 Intellect Series Torque Tester
Overview
Features:
- Single-step access to all functions.
- Bi-directional accuracy of ±0.25% of indicated reading with AWS transducers.
- Key-lock for tamper-proof operation.
- Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgf m
- 3 modes of operation: Track, Peak, and 1st Peak.
- Plug & Play: Auto-recognition of up to seven transducers.
- Memory storage for 999 data points.
- RS-232 output.
- Visual limit alarms.
- NiMH rechargeable batteries provide 8-10 hours continuous use.
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
- Rundown fixtures available through 1,000 Lb.ft.
- For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.
Transducer Ranges
| Model | Range | Drive Size | Run-Down Fixture |
| ITIO-10 | 10 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-50 | 50 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-50 | 50 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITIO-100 | 100 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-10 | 10 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-25 | 25 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-50 | 50 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 1/4" | Included |
| ITI-100 | 100 Lbf. In. Intellect Transducer with Bench Stand, 1/4" Dr. | 3/8" | Included |
| ITI-250 | 250 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr. | 3/8" | Included |
| ITI-500 | 500 Lbf. In. Intellect Transducer with Bench Stand, 3/8" Dr. | 3/8" | Included |
| ITF-100 | 100 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 3/8" | Included |
| ITF-150 | 150 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 1/2" | Optional |
| ITF-250 | 250 Lbf. Ft. Intellect Transducer with Bench Stand, 1/2" Dr. | 1/2" | Optional |
| ITF-600 | 600 Lbf. Ft. Intellect Transducer with Bench Stand, 3/4" Dr. | 1/2" | Optional |
| ITF-1000 | 1000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr. | 3/4" | Optional |
| ITF-2000 | 2000 Lbf. Ft. Intellect Transducer with Bench Stand, 1" Dr. (w/o Bench Stand) | ||
| ITF-3000 | 3000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand) | ||
| ITF-5000 | 5000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr. (w/o Bench Stand) |
Features & Benefits
- Single-step access to all functions.
- Plug & Play: Auto-recognition of up to seven transducers.
- Selectable filtering speeds from 125 to 2000Hz
- Reads Oz.in, Lb.in., Lb.ft, Nm, cNm, KgfCm, gfCm, Kgfm
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
