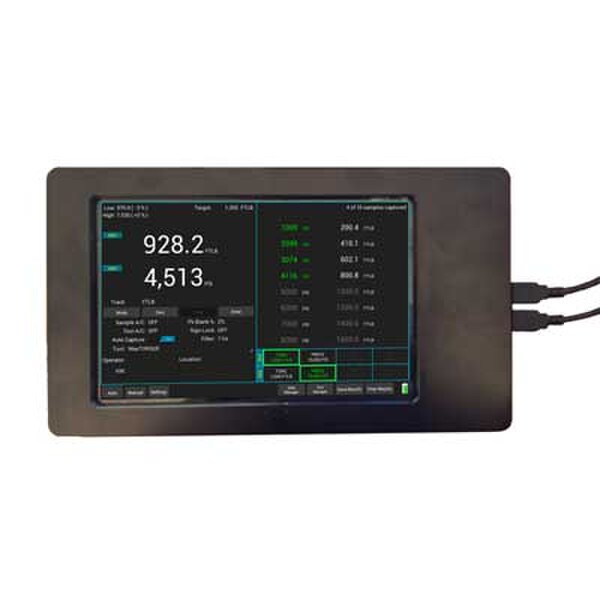

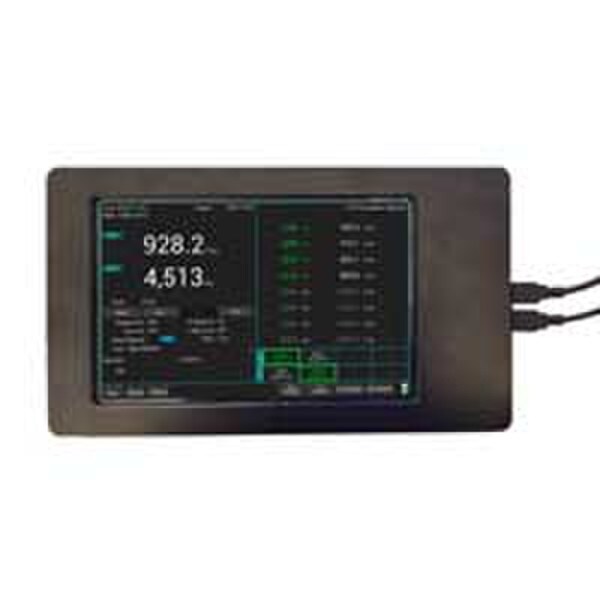

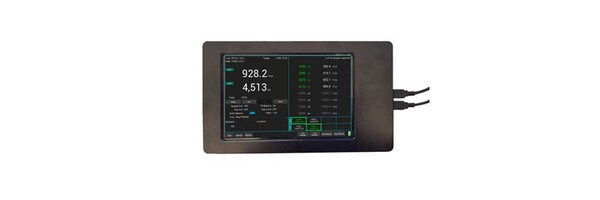

8000 Series Touch Screen Torque Analyzers

The AWS-8000 instruments, feature high resolution touch screen display with 32 GB of memory for file and data archiving. Single or multiple digital transducer inputs and single or dual channel options. System accuracy of 0.5% indicated reading for top 90% of transducer range.

Software, Our team has developed a firmwaree and software that facilitate the testing, archiving and printing of tool tests, tool capability studies and tool calibration and certifications.

Transducers and Rundown Fixtures1/4", 3/8", 1/2" 3/4", 1" and 1 1/2" square drive digital transducers, from 100 Ozf In to 10,000 Lbf Ft are available. Order transducers an rundown fixtures as needed.

Features:
• System accuracy of ±0.5% of indicated reading, top 90% of range.
• Solid machined billet aluminum housing.
• Designed to facilitate plug and play, self recognizing transducers.
• Intuitive Touch screen User interface.
• Same feature set as our other AWS instruments; including Peak,
• First Peak and Track modes, upper and lower limits, memory and data output.
