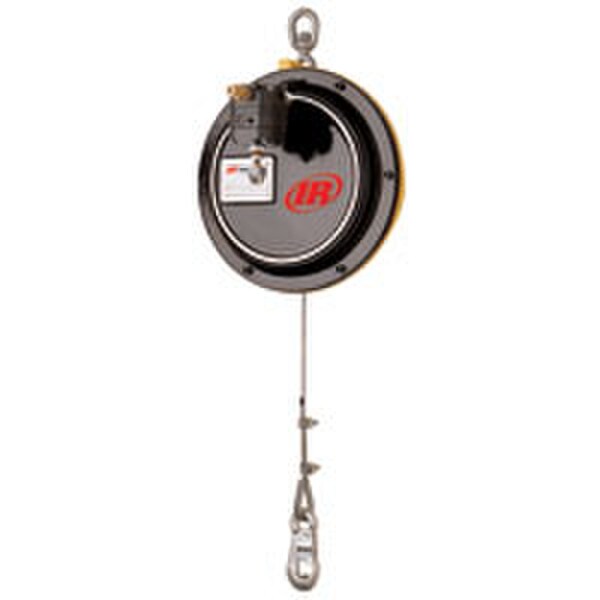

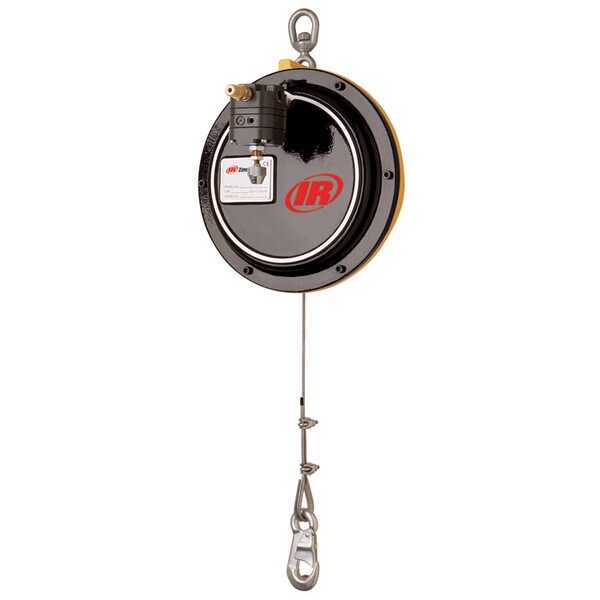

BAW005060 | Air Balancer, single control, 50 lbs, 60 in. travel
Overview
Ingersoll Rand's BAW005060 pneumatic balancer are used for single-load suspending applications, whether it's at a fixed height or using both hands to raise, lower, position and float a load. When using the BAW005060, you will feel little to no weight or resistance while manipulating the load.
The controller features a self-relieving regulator that automatically adjusts airflow to raise, lower, and suspend loads at the desired height. This ensures smooth and precise positioning with minimal effort. The regulator can also be fine-tuned to gradually lift a load out of the operator's way.
Designed for suspending and positioning constant-weight items, this system enhances efficiency and ergonomics in various applications.
Features & Benefits
- All-steel housing, engineered plastic, aircraft grade wire rope and self-closing cast safety hook.
- Include precise positioning, a pre-lubricated piston chamber, intuitive speed control, and continuous duty operation.
- If the air supply is ever interrupted, the unit will maintain the load in the suspended position.
- Standard emergency Chain retract brakes mean that if your load is accidentally lost, a spring-loaded centrifugal brake
Technical Specifications
Technical Documents
Ingersoll Rand BA series Air Balancer Product Information (PDF)- Ingersoll Rand BA series Air Balancer Parts Information (PDF)
- Ingersoll Rand BA series Air Balancer Repair Manual (PDF)
- Ingersoll Rand BA series Air Balancer Installation Guide (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
