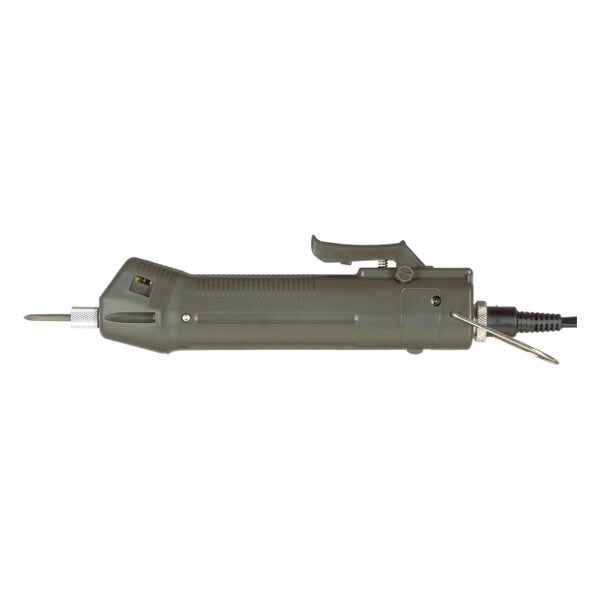

BL-5000-15 | Electric Torque Screwdriver, 0.3 - 1 Nm, hi-speed
Overview
Introducing the HIOS BL-5000-15 Electric Torque Screwdriver, a powerful and precise assembly tool designed to streamline your fastening tasks. Engineered by HIOS, this electric torque screwdriver combines advanced features with exceptional durability to take your assembly operations to new heights.
- Min Torque(Nm): 0.3
- Max Torque(Nm): 1.0
- Drive Size: H4
- Free Speed(RPM): 1500
- Start Type: Lever or Push
- Manufacturer: HIOS
Compatible power supply T-45BL / T-70BL sold separately.
Features & Benefits
- Unrivaled Torque Range: With a torque range of 0.3 to 1 Nm, the BL-5000-15 screwdriver effortlessly handles various fastening applications, ensuring accuracy and efficiency.
- High Speed for Increased Productivity: The hi-speed capability of this electric screwdriver allows for faster driving and tightening, maximizing your productivity and reducing cycle times.
- H4 Drive Size: The H4 drive size offers a perfect balance of power and precision, making it suitable for a wide range of assembly needs.
- Brushless Motor Technology: Equipped with an ultra-strong brushless motor, the BL-5000-15 delivers enhanced durability and stability. Say goodbye to carbon particle generation and experience a cleaner working environment.
Technical Specifications
Series
BL
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H4
Free Speed (RPM)
1500
Torque Range (in lb)
2.7 - 8.9
Torque Range (Nm)
0.3 - 1
Torque Range (kgf cm)
3 - 10.2
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the BL-5000-15?
What type of application is the BL-5000-15 best suited for?
Electric Torque Screwdrivers like the BL-5000-15, are most commonly used for medium to heavy assembly applications where precise torque control is required. The BL-5000-15 is an model with a clutch.
What types of bits does the BL-5000-15 accept?
The BL-5000-15 Electric Torque Screwdriver uses H4 HIOS shank bits. It also use the following hex shanks: H5, 5HEX and 1/4HEX
How do I know if the BL-5000-15 is the correct tool for my application?
Start off by confirming the required torque for your application. We suggest selecting a tool where your torque range is at ~80% of the tools maximum capability. This will ensure you are not putting too much stress on the tool. The next step would be to determine your required speed; higher speed is not always better since a tool with a lower speed will provide a more repeatable fastening. The last step is to determine the most ergonomic configuration for the operator; Inline, Angle, & Pistol grip options are usually available but decide on which style is most suitable. If you need help please contact one of our knowledgeable team members for assistance.
Does the BL-5000-15 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
