BLG-4000BC1 | Electric Torque Screwdriver, 0.1 - 0.55 Nm, built-in screw counter
- Overview
- Features & Benefits
- Technical Specifications
- Technical Documents
- Videos & Media
- Frequently Asked Questions
Overview

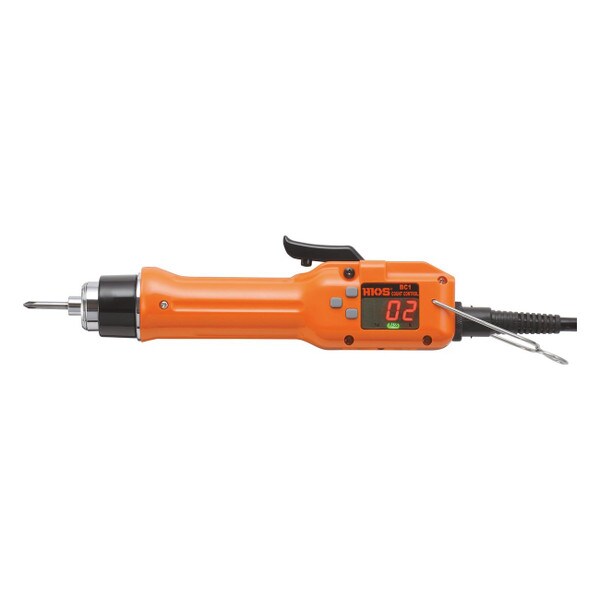

Introducing the HIOS BLG-4000BC1 Electric Torque Screwdriver, a revolutionary assembly tool that combines precision, efficiency, and versatility. Engineered by HIOS, this electric screwdriver empowers you to achieve flawless fastening results with its advanced features and user-friendly design.
- Min Torque(Nm): 0.1
- Max Torque(Nm): 0.55
- Drive Size: H4
- Free Speed(RPM): 1000
- Start Type: Lever Start
- Manufacturer: HIOS
Compatible power supply T-45BL / T-70BL sold separately.
Features & Benefits
- Unrivaled Precision: Experience unparalleled precision with a torque range of 0.1 to 0.55 Nm, making it ideal for delicate and sensitive assembly applications.
- Built-in Screw Counter: The integrated screw counter ensures accurate and reliable fastening by preventing human errors and maintaining consistent quality control.
- Counter On/Off: The convenient counter on/off feature allows you to toggle the screw counter based on your specific needs, providing flexibility in your assembly processes.
- Error Detection: The screwdriver's intelligent system detects errors in fastening time, alerting you to potential issues and minimizing defects.
Technical Specifications
Series
BLG-BC1
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H4
Free Speed (RPM)
1000
Torque Range (in lb)
0.9 - 4.87
Torque Range (Nm)
0.1 - 0.55
Torque Range (kgf cm)
1 - 5.6
Technical Documents
HIOS Electric Torque Screwdrivers Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the BLG-4000BC1?
What type of application is the BLG-4000BC1 best suited for?
Electric Screwdrivers like the BLG-4000BC1, are most commonly used for medium to heavy assembly applications where precise torque control is required.
How Fast is the BLG-4000BC1?
The BLG-4000BC1 can go up to 1000 rpm.
How do I set the torque on the BLG-4000BC1?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the BLG-4000BC1 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
