BLG-5000ZERO1-15 | Electric Torque Screwdriver, 2.3 - 3 Nm, screw/pulse counter

(0)No Reviews yet
$888.47
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

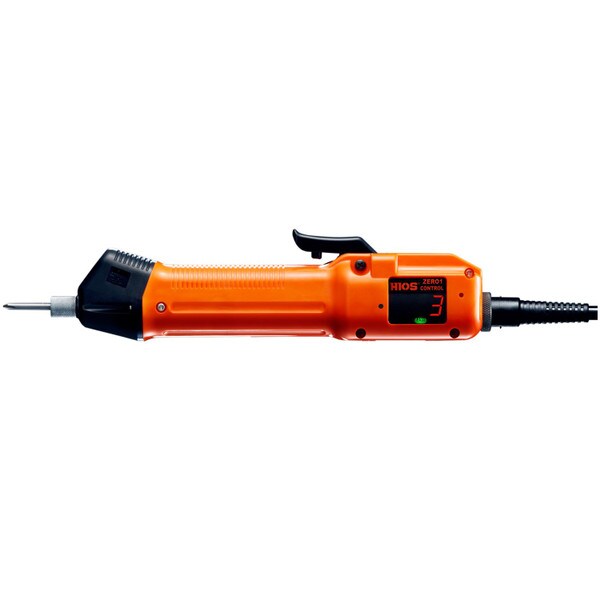

Introducing the BLG-5000ZERO1-15 Electric Torque Screwdriver, a revolutionary assembly tool that combines precision, efficiency, and ease of use. Engineered by HIOS, this electric screwdriver takes your fastening tasks to the next level with its innovative features and exceptional performance.

  • Min Torque(Nm): 2.3
  • Max Torque(Nm): 3.0
  • Speed(RPM): 1500
  • Start Type: Lever or Push
  • Manufacturer: HIOS

Compatible power supply T-45BL / T-70BL sold separately.

Back

Features & Benefits

  • Direct Teaching Function: The groundbreaking direct teaching function simplifies the setup process, enabling even novice users to become skilled in just 30 seconds. By simply fastening a few screws into a workpiece, the screwdriver automatically learns the correct fastening parameters, eliminating g
  • Error Detection: With real-time error detection capabilities, the BLG-5000ZERO1-15 Electric Torque Screwdriver ensures the utmost precision and quality in your assembly operations. It detects fastening errors such as insufficient or excessive torque, preventing defects and maintaining consistent res
  • Error Warning System: To minimize downtime and maintain productivity, the screwdriver is equipped with an error warning system. Audible sounds and a visual lamp alert the operator to any fastening errors, allowing for immediate corrective action.
  • Screw Counter: Equipped with a screw counter, this electric screwdriver keeps track of the number of screws fastened, facilitating accurate monitoring and control of your assembly processes. The screw count ranges from 1 to 99, providing flexibility for various applications.
Back

Technical Specifications

Series
BLG-ZERO1
Type
Electric Torque Screwdriver
Grip Type
Inline
Drive size
H4
Free Speed (RPM)
1500
Torque Range (in lb)
20.4 - 26.6
Torque Range (Nm)
2.3 - 3
Torque Range (kgf cm)
23 - 30.6
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the BLG-5000ZERO1-15?

The BLG-5000ZERO1-15 has a torque range from 20.4 to 26.6 in lbs (2.3 - 3 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the BLG-5000ZERO1-15, are most commonly used for medium to heavy assembly applications where precise torque control is required.
The BLG-5000ZERO1-15 can go up to 1500 rpm.

There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
