BMRD30CN2 | Rotary Adjustable Torque Screwdriver for fine screws, 4 - 30 Ncm, 0.2 grad.
Overview

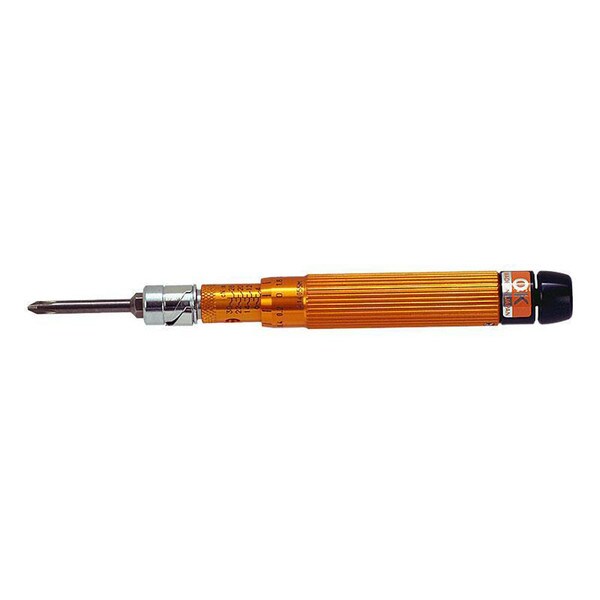

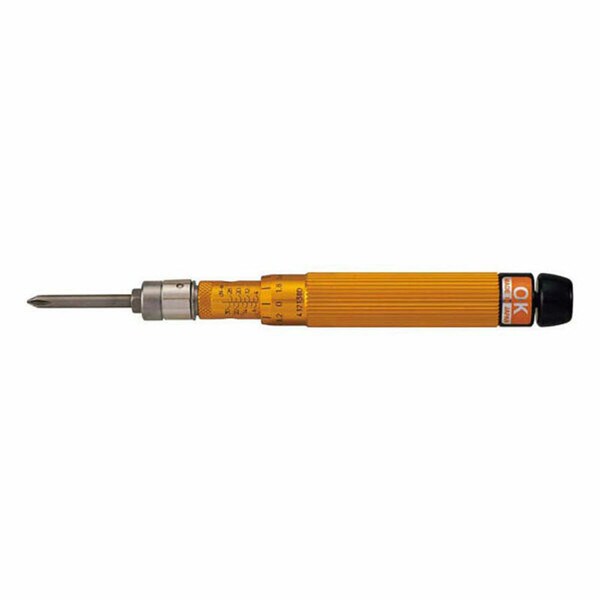

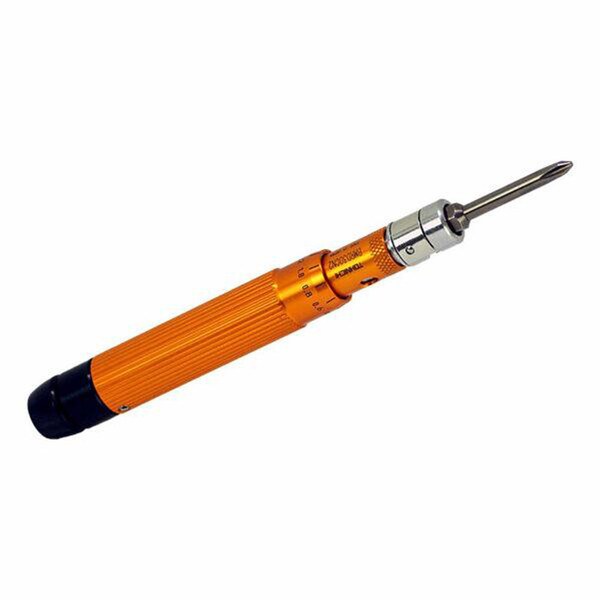

Introducing the Tohonichi BMRD30CN2 Rotary Adjustable Torque Screwdriver, a precision fastening tool designed for intricate assembly tasks. This remarkable screwdriver combines exceptional accuracy with user-friendly features, making it an indispensable asset in various industries.
- Torque Range: 4 - 30 Ncm
- Torque Increments: 0.2 grad
- Bit Type: 1/4" hex root (sold separately)
- Overall Length: 155 mm
- Weight: 135 g
- Applicable Standards: ISO 6789 Type II Class D
- Manufacturer: Tohnichi
Features & Benefits
- Adjustable Torque Range: With an adjustable torque range from 4 to 30 Ncm and 0.2 grad increments, the BMRD30CN2 allows for precise torque control, ensuring optimal tightening of delicate fasteners.
- Rotary Slip Mechanism: The innovative rotary slip mechanism prevents over-torque situations. It provides a tactile and audible click when the set torque is reached, preventing excessive force and protecting sensitive components.
- Index Finger Holding Feature: The ergonomic design includes an index finger holding feature, enabling precise movements and maximum control during tightening.
- Enhanced Durability: Tohnichi's toggle clutch torque mechanism ensures enhanced durability and reliability. This robust construction guarantees consistent performance even with frequent use.
- Versatile Bit Compatibility: The BMRD30CN2 accepts standard 1/4" hex root bits (sold separately), providing versatility for various fastening applications.
Technical Specifications
Model
BMRD30CN2
Screw Size
M1.8 - M2
Type
Rotary Adjustable Torque Screwdriver
Drive size
1/4'' hex
Manufacturer
Tohnichi
SKU
BMRD30CN2
Stock Code
2
Style
Inline
Overall Length
116mm
Series
BMRD
Accuracy
±3%
