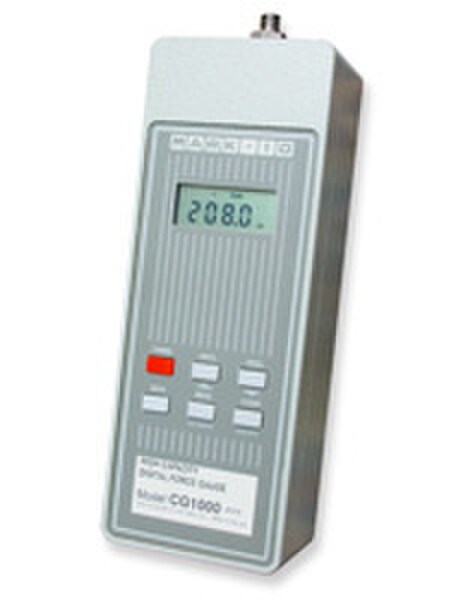

CG Force Gauge

The Series CG High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments

• RS-232, Mitutoyo and analog outputs
• GCL-Gauge Control Language for full computer control
• Automatic timed output on RS-232
• Dual set points with outputs
• Averaging mode for average readings over time
• External trigger for contact or switch testing and data capture
• General purpose I/O for external device control
• Programmable analog and digital filters
• Selectable units of measurement
• Programmable default configuration
• Peak memory for tensile and compressive forces
• Push-button calibration
• Battery or AC operation
• Programmable automatic shutoff
• Ultra-rugged, reversible aluminum housing
• Same housing size for both capacities (500 lb and 1,000 lb)
• Compatible with test stand models TSF, TSFH, TSA, TSC, and TSCH and grips
• Accuracy: ± 0.2% of full scale ±1 digit
• Safe overload: 150% of capacity
• Battery life: 8-10 hours per charge
• Weight: 1.8 lbs (0.8 kg)
• Environmental requirements: 40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
• Warranty: 3 years
• CE mark
