TT01-Series
Overview

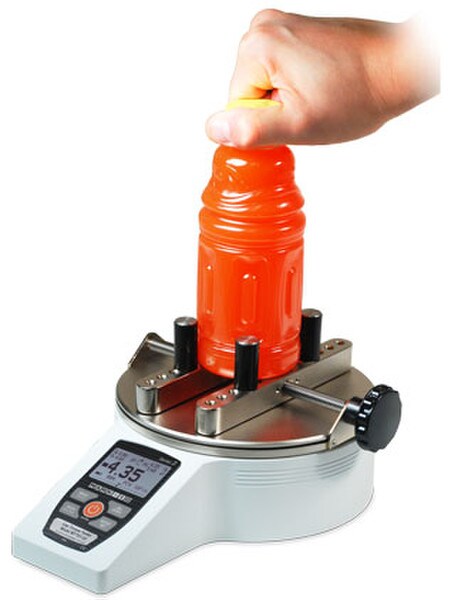

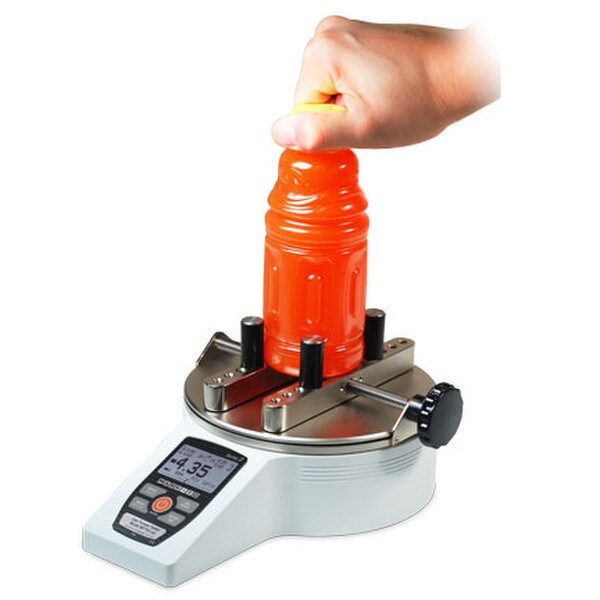

Series TT01 Bottle Cap Torque Testers present a simple, accurate, and economical solution for manual cap torque testing. These cap torque testers are ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques. Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Standard adjustable posts effectively grip a broad range of container shapes and sizes. Optional flat jaws and adjustable jaws are available for unique samples. Innovative mechanical overload protection provides peace of mind. The CTA cap torque tester features an aluminum housing, rugged construction and close attention to engineering.- Measures in real time or peak torque modes
- Captures peak readings for application and removal torques
- Data output via RS-232 and Mitutoyo
- Selectable units of measurement
- Movable threaded sample gripping posts
- Accepts samples up to 7.5" (189.4 mm) dia.
- 3 torque capacities available
- Operates on a 9V battery or AC adapter
- Accuracy: ±0.5% of full scale ±1 digit
- Safe overload: 150% of capacity
- Weight: 6.5 lbs (2.9 kg)
- CE mark
- Includes 3 YEAR WARRANTY
Technical Documents
TT01 User Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
