6151604080 | CP3019-20AC | 1/4 in. Angle Die Grinder, 20000 rpm, 0.5 hp, Rear exhaust
Overview

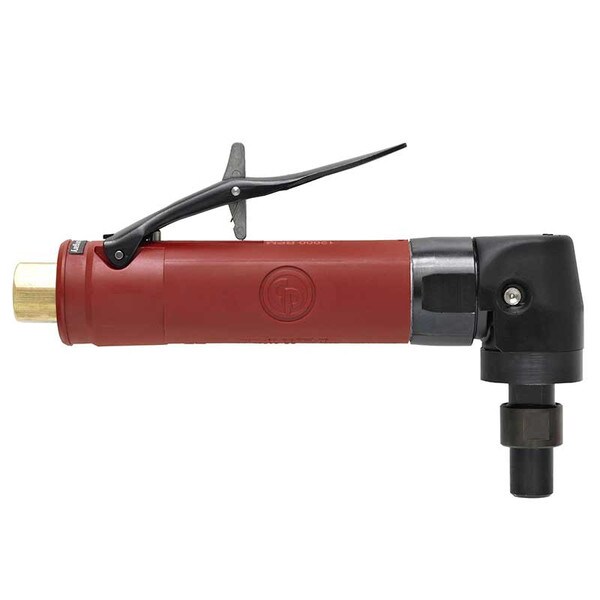

Chicago Pneumatic 1/4 in. Angle Die Grinder, 20000 rpm, 0.5 hp, Rear exhaust
CP3019-20AC
CP3019-20AC, 1/4 in. Angle Die Grinder, 20000 rpm, 0.5 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Angle Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial angle wheel grinder
- Optimal productivity
- Highest durability in demanding applications, up to 2000 hour service interval
- Superior Ergonomics
Features
- Compact body
- Insulating composite over-housing
- Streamlined safety lever
- Highly durable bevel gear
- Rear exhaust
- 1/4" (6.35 mm) collet holder
- 0.5 hp (375 W) governed motor
- 20,000 rpm free speed
Technical Specifications
Model
CP3019-20AC
Collet (in)
1/4
Type
Angle Die Grinder
Manufacturer
Chicago Pneumatic
Length (mm)
216
Free Speed (RPM)
20000
SKU
6151604080
Stock Code
2
Exhaust
Rear
Weight (lbs)
1.11
Series
CP3019
Air Inlet NPT (in)
1/4
Rated Power (hp)
0.5
Air Consp. @ Free Speed (L/s)
5.3
Technical Documents
Chicago Pneumatic CP3019-20AC 1/4 in. Angle Die Grinder Parts Breakdown (PDF)- Chicago Pneumatic CP3019-20AC 1/4 in. Angle Die Grinder Operator's Manual (PDF)
- Chicago Pneumatic Air Die Grinder Safety Instructions (PDF)
