6151618050 | CP0200B25 | Bench Sand Rammer, 780 bpm
Overview

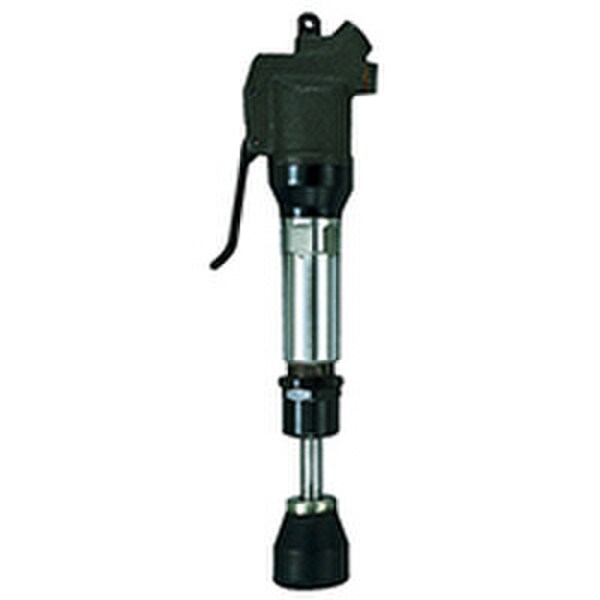

Chicago Pneumatic Bench Sand Rammer, 780 bpm
CP0200B25
CP0200B25, Bench Sand Rammer, 780 bpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Bench Sand Rammer at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Ideal for foundry applications
- Comfortable operation and high production
- Bench rammers used for casting sand in cylinders, large molds
Features
- Powerful rammers, but still lightweight tools
- Extended models for a comfortable use
Features & Benefits
- Ideal for foundry applications
- High effiency due to the high bpm
- Extra durability due to heat treated parts
- Comfortable operation and high production
Technical Specifications
Model
CP0200B25
Type
Bench Sand Rammer
Manufacturer
Chicago Pneumatic
Length (mm)
506
SKU
6151618050
Stock Code
2
Air Inlet
3/8 in.
Min Hose Size (in)
1/2
Weight (lbs)
12.1
Bore Diameter (in)
1
Blows Per Minute (bpm)
780
Stroke Length (in)
3.27
Piston Stroke (in)
3.26
Air Cons. @ Load (cfm)
24.72
Air Cons. @ Load (L/min)
700
Technical Documents
- Chicago Pneumatic CP0200B25 Bench Sand Rammer Parts Breakdown (PDF)
- Chicago Pneumatic CP0200B25 Bench Sand Rammer Operator Manual (PDF)
- Chicago Pneumatic Hammers and Scalers Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
