6151933514 | CP3514 | 5 in Orbital Sander, Central Vacuum, Hook and Loop, 12000 rpm, 0.3 hp
Overview

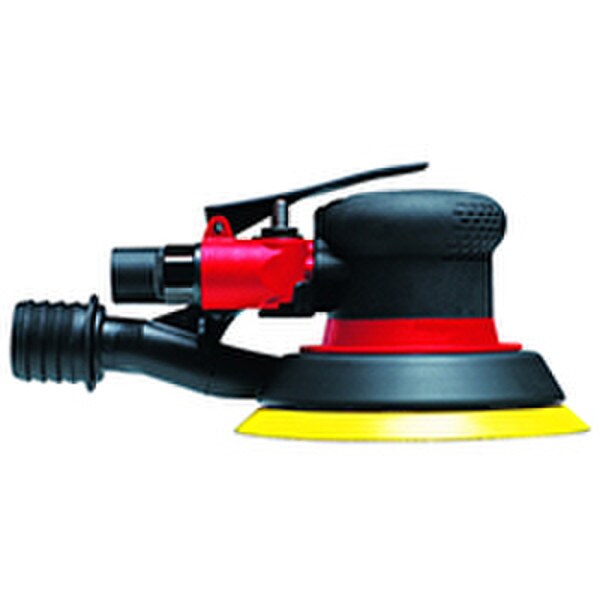

Chicago Pneumatic 5 in Orbital Sander, Central Vacuum, Hook and Loop, 12000 rpm, 0.3 hp
CP3514
CP3514, 5 in Orbital Sander, Central Vacuum, Hook and Loop, 12000 rpm, 0.3 hp by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Orbital Sander at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Operator comfort with ergonomic palm shape
- Productivity increased with low vibration level
- Powerful and ergonomic palm shape for vertical and horizontal applications
- 3/16" (5 mm): great for surface preparation from body filler to paint primer
Features
- Central Vacuum (CV) model in Hook & Loop Pad
- 5" (125 mm) random orbital palm sander
- 3/16" (5 mm) orbit
- Powerful 0.3 hp (210 W) motor
- Soft grip, tear drop design for perfect control
- Low noise level
- Shut-off and speed control switch
Technical Specifications
Model
CP3514
Type
Orbital Sander
Manufacturer
Chicago Pneumatic
Free Speed (RPM)
12000
SKU
6151933514
Diameter - mm
5''
Stock Code
2
Vacuum
Central Vacuum
Self Vacuum
Yes
Dimensions
7.9 x 6 x 4.1 in.
Style
Palm
Output
5/16'' - 24
Min Hose Size (in)
3/8
Weight (lbs)
1.4
Series
CP3510
Pad Diameter (in)
5
Rated Power (hp)
0.3
Pad Face
Hook and Loop
Orbit Diameter (in)
3/16''
Technical Documents
Chicago Pneumatic CP3514 Orbital Sander Parts Breakdown (PDF)- Chicago Pneumatic CP3514 Orbital Sander Operator Manual (PDF)
- Chicago Pneumatic Sanders and Polishers Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
