T024134 | CP785H | 1/2 in 11.3 ft lb Pistol Drill, 500 rpm, 0.5 hp
Overview

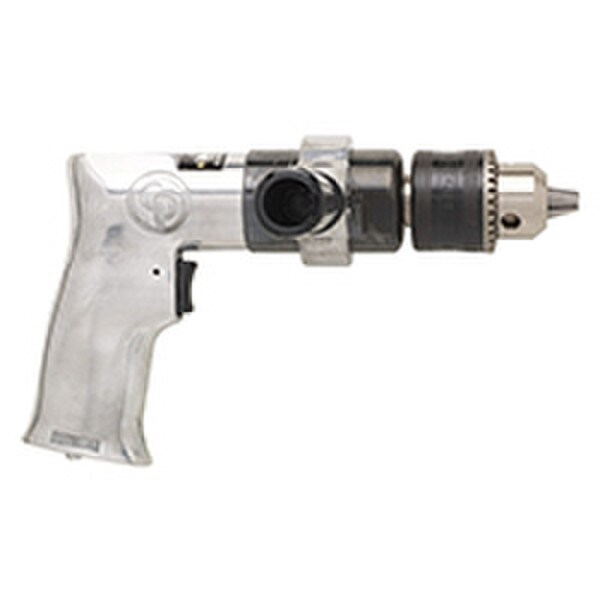

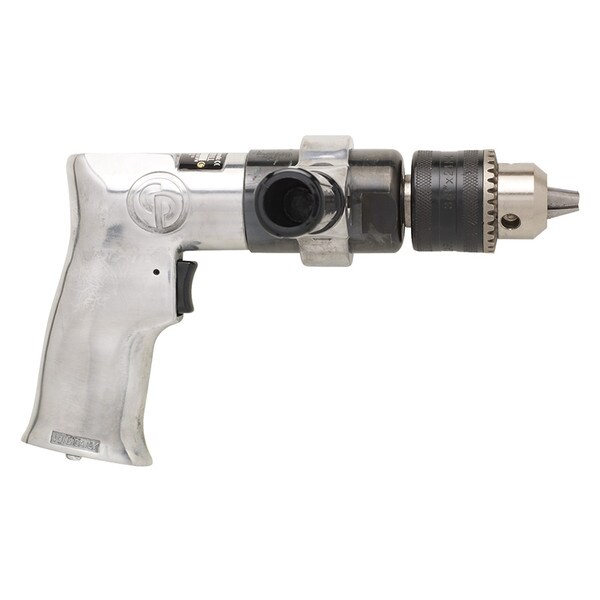

Chicago Pneumatic 1/2 in 11.3 ft lb Pistol Drill, 500 rpm, 0.5 hp
CP785H
CP785H, 1/2 in 11.3 ft lb Pistol Drill, 500 rpm, 0.5 hp by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Pistol Drill at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Industrial maintenance duty and designed for smooth operation and extended tool life
- Suitable tool for various applications of low speed drilling
Features
- 1/2" (13 mm) pistol drill
- Powerful energy efficient motor resist stalls
- Side handle for comfort and control
Features & Benefits
- High power 0.5hp (375W) with excellent control by teasing throttle handle
- High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH
- High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
Technical Specifications
Model
CP785H
Type
Drill
Manufacturer
Chicago Pneumatic
Length (mm)
197
Free Speed (RPM)
500
SKU
T024134
Stock Code
2
Style
Pistol Grip
Max Torque (Ft Lb)
11.3
Min Hose Size (in)
3/8
Weight (lbs)
3.0
Actuation
Trigger
Stall Torque (ft lb)
11.3
Series
Low Speed
Spindle
3/8'' - 24
Stall Torque (in lb)
135.6
Chuck Capacity (in)
1/4
Rated Power (hp)
0.5
Technical Documents
Chicago Pneumatic CP785H Pistol Drill Operator Manual (PDF)- Chicago Pneumatic Handheld Pneumatic Drills and Tappers Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
