T019704 | CP860 | 1/4 in. Straight Die Grinder, 24000 rpm
Overview

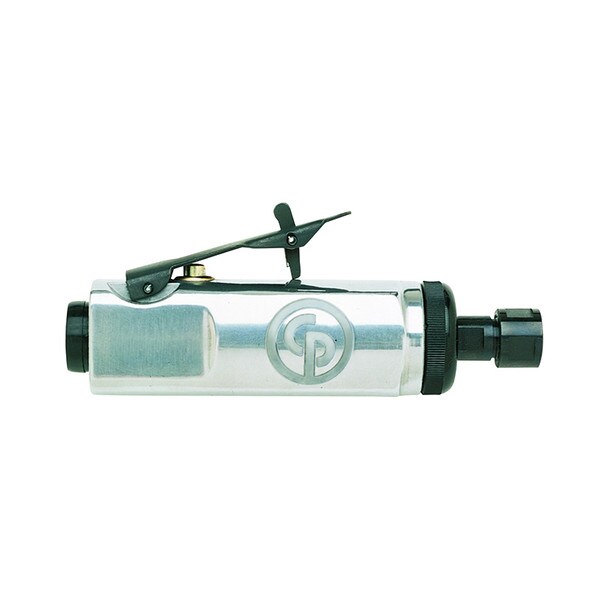

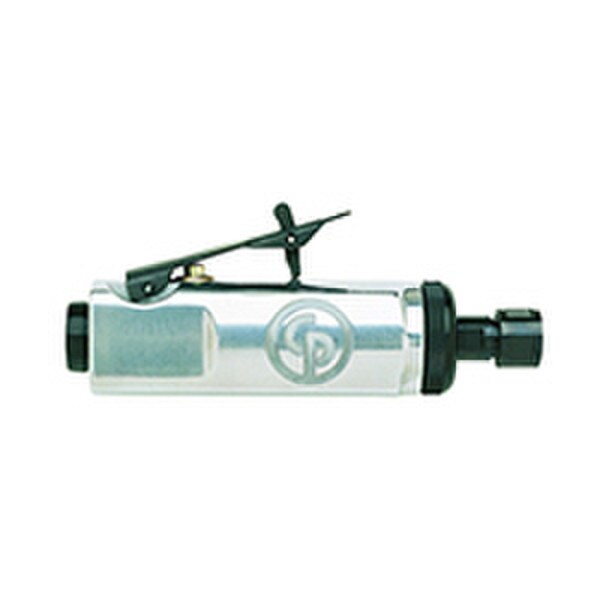

Chicago Pneumatic 1/4 in. Straight Die Grinder, 24000 rpm
CP860
CP860, 1/4 in. Straight Die Grinder, 24000 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Straight Die Grinder at a lower price? Call or email Customer Service and we'll match the price!
Benfits
- General maintenance application die grinder
- Productivity and control
- Excellent for cleaning tires, moldings, porting, relieving engines, and general high-speed polishing and grinding
Features
- 1/4" collet
- Rugged and energy efficient 0.54 hp (400 W) motor
- Adjustable speed regulator
- Lock-off throttle
- Square handle design for greater comfort
360° Product Viewer
Technical Specifications
Model
CP860
Collet (in)
1/4
Type
Straight Die Grinder
Manufacturer
Chicago Pneumatic
Length (mm)
146
Free Speed (RPM)
24000
SKU
T019704
Stock Code
2
Exhaust
Rear
Min Hose Size (in)
3/8
Weight (lbs)
1.3
Series
CP8
Rated Power (hp)
0.54
Technical Documents
- Chicago Pneumatic CP860 Straight Die Grinder Parts Breakdown (PDF)
- Chicago Pneumatic CP860 Straight Die Grinder Operator Manual (PDF)
- Chicago Pneumatic CP860 Straight Die Grinder CE Certificate (PDF)
- Chicago Pneumatic Air Die Grinder Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
