6151580300 | CP1816 | 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall
Overview

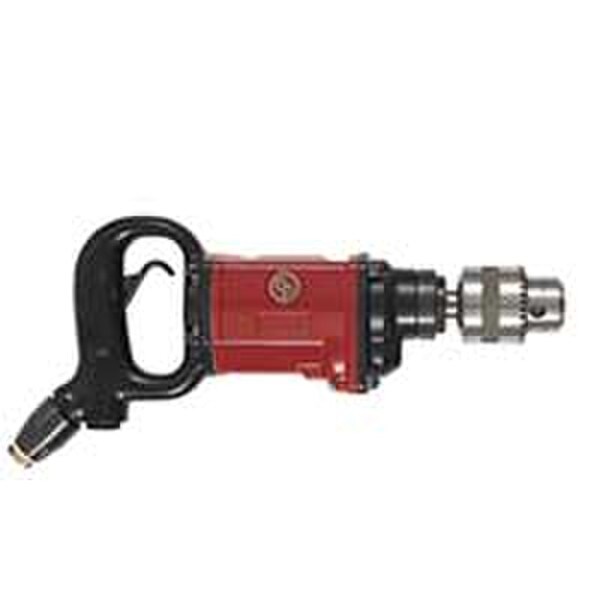

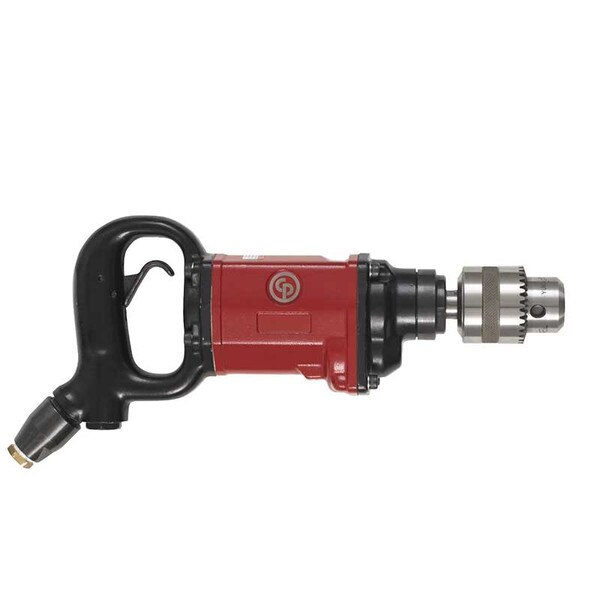

Chicago Pneumatic 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall
CP1816
CP1816, 5/8 in. Pneumatic Air Drill, 1 hp, 800 rpm, 25.3 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 5/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!
Benefits
- Designed for intensive duty, high durability and precision in industrial maintenance and production applications
- Ideal for drilling of mild steel, cast iron
Features
- 5/8" (16 mm) D-handle drill
- Powerfull with 1 hp (750 W) motor
- Excellent durable gearbox ensures the strong drilling
Features & Benefits
- High power 0.5hp (375W) with excellent control by teasing throttle handle
- High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH
- High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
Technical Specifications
Model
CP1816
Type
Drill
Manufacturer
Chicago Pneumatic
Length (mm)
364
Free Speed (RPM)
800
SKU
6151580300
Stock Code
2
Style
D-Handle
Max Torque (Ft Lb)
25.3
Weight (lbs)
8.1
Handle Type
D-Handle
Actuation
Trigger
Stall Torque (ft lb)
25.3
Series
Low Speed
Spindle
5/8'' - 16
Stall Torque (in lb)
303.6
Air Inlet NPT (in)
3/8
Chuck Capacity (in)
5/8
Rated Power (hp)
1
Air Consp. @ Free Speed (L/s)
20
Technical Documents
Chicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill Parts Breakdown (PDF)- Chicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill Operator's Manual (PDF)
- Chicago Pneumatic Air Drill and Air Tapper Safety Instructions (PDF)
- Chicago Pneumatic CP1816 5/8 in. Pneumatic Air Drill CE Certificate (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
