6151602070 | CP9113GES | 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust
Overview

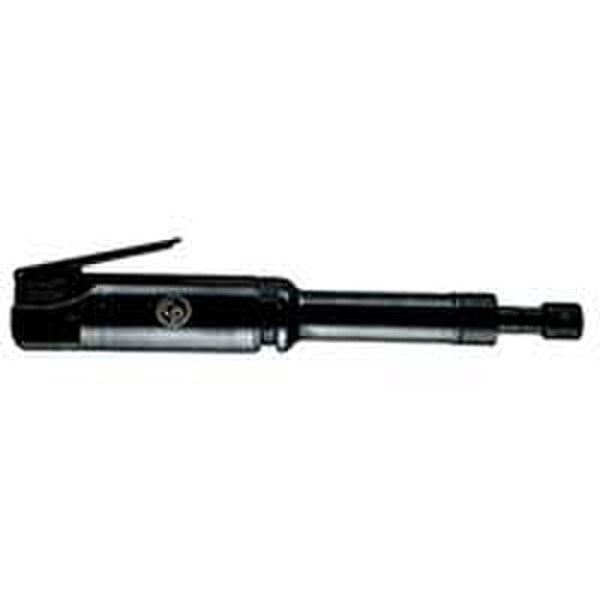

Chicago Pneumatic 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust
CP9113GES
CP9113GES, 1/4 in. Extended Die Grinder, 25000 rpm, 1 hp, Side exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 1/4 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial die grinder
- High body durability
- Designed for rough use
- Withstands extreme temperatures
Features
- Robust machined steel housing
- Robust safety lever
- Side exhaust
- 1/4" (6.35 mm) collet holder
- Extended body
- 1 hp (750 W) motor
- 25,000 rpm free speed
Technical Specifications
Model
CP9113GES
Collet (in)
1/4
Type
Extended Die Grinder
Manufacturer
Chicago Pneumatic
Length (mm)
320
Free Speed (RPM)
25000
SKU
6151602070
Stock Code
2
Exhaust
Side
Weight (lbs)
3.53
Series
CP91
Air Inlet NPT (in)
3/8
Rated Power (hp)
1
Air Consp. @ Free Speed (L/s)
17
Technical Documents
- Chicago Pneumatic CP9113GES 1/4 in. Extended Die Grinder Parts Breakdown (PDF)
- Chicago Pneumatic CP9113GES 1/4 in. Extended Die Grinder Operator's Manual (PDF)
- Chicago Pneumatic Air Die Grinder Safety Instructions (PDF)
