Overview

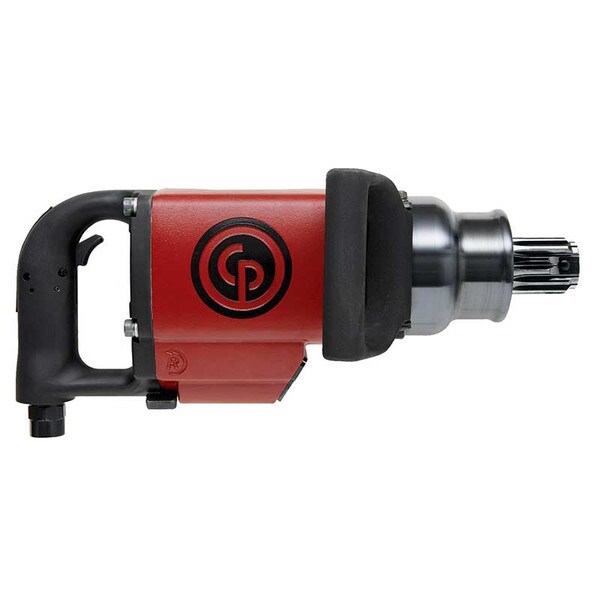

Chicago Pneumatic #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm

CP6120-D35L

CP6120-D35L, #5 spline 3600 ft lb Air Impact Wrench, D-Handle Inside Trigger, 3500 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this #5 spline 3600 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!

Benefits
  • Unbeatable combination of power and ergonomics
  • Extremely low lateral vibrations for best comfort and safety
  • Excellent durability
  • The reference tool for the most demanding applications in Energy and Metal working segments
Features
  • Premium Industrial 1-1/2" impact wrench
  • CP's 2-Jaw clutch for superior ergonomics and productivity
  • Very robust steel clutch housing and aluminum motor housing
  • Extremely comfortable handle and adjustable support handle
  • Possibility to change inside/outside trigger, parts included in the box
  • Reverse biased 15%, possiblity to change to forward biased by turning around the air motor cylinder
Back

Features & Benefits

  • Maximum Productivity provided by 2-jaw clutch
  • Excellent durability
Back

Technical Specifications

Model
CP6120-D35L
Recommended Torque Range (Ft Lb)
600 - 2000
Type
Air Impact Wrench
Drive size
#5 Spline
Manufacturer
Chicago Pneumatic
Length (mm)
419
Free Speed (RPM)
3500
SKU
6151590130
Stock Code
2
Style
D-Handle
Clutch Type
2-jaw clutch
Max Torque (Ft Lb)
3600
Max Torque (Nm)
4880
Square Drive
no. 5 spline
Weight (lbs)
34.5
Side to Center (in)
2.13
Handle Type
D-Handle, Inside Trigger
Blows Per Minute (bpm)
960
Actuation
Trigger
Series
CP6120
Retainer Type
Hole
Air Inlet NPT (in)
1/2
Air Consp. @ Free Speed (L/s)
51.5
