6151909561 | CP9561 | 3/4 in. 885 ft lb Air Impact Wrench, Pistol, 5500 rpm
Overview

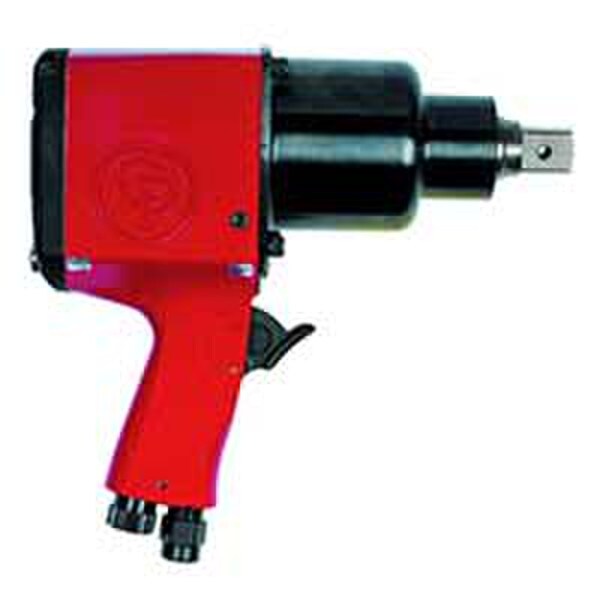

Chicago Pneumatic 3/4 in. 885 ft lb Air Impact Wrench, Pistol, 5500 rpm
CP9561
CP9561, 3/4 in. 885 ft lb Air Impact Wrench, Pistol, 5500 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 3/4 in. 885 ft lb Air Impact Wrench at a lower price? Call or email and we'll match the price!
Benefits
- Industrial Maintenance & Production applications
- High performances, especially on hard joints
- Operator comfort due to low vibrations and noise level
- Great control with a multi-position regulator
- Reliable pin clutch in oil bath & durable housing
- Compact 3-part construction & easy to maintain
Features
- 3/4" Industrial impact wrench with Hole-type socket retainer
- DYNA-PACT (Pin clutch) oil bath
- Aluminum body & steel clutch housing
- Durable reverse valve & steel trigger
- Built-in regulator on the handle
Technical Specifications
Model
CP9561
Recommended Torque Range (Ft Lb)
150 - 700
Type
Air Impact Wrench
Manufacturer
Chicago Pneumatic
Length (mm)
216
Free Speed (RPM)
5500
SKU
6151909561
Stock Code
2
Clutch Type
Pin clutch
Max Torque (Ft Lb)
885
Square Drive
3/4 in.
Weight (lbs)
11.1
Side to Center (in)
1.54
Handle Type
Pistol
Blows Per Minute (bpm)
900
Retainer Type
Hole
Air Inlet NPT (in)
1/4
Technical Documents
Chicago Pneumatic CP9561 3/4 in. 885 ft lb Air Impact Wrench Parts Breakdown (PDF)- Chicago Pneumatic CP9561 3/4 in. 885 ft lb Air Impact Wrench Operator's Manual (PDF)
- Chicago Pneumatic Air Impact and Pulse Wrench Safety Instructions (PDF)
- Chicago Pneumatic CP9561 3/4 in. 885 ft lb Air Impact Wrench CE Certificate (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
