T025097 | CP782 | 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm
Overview

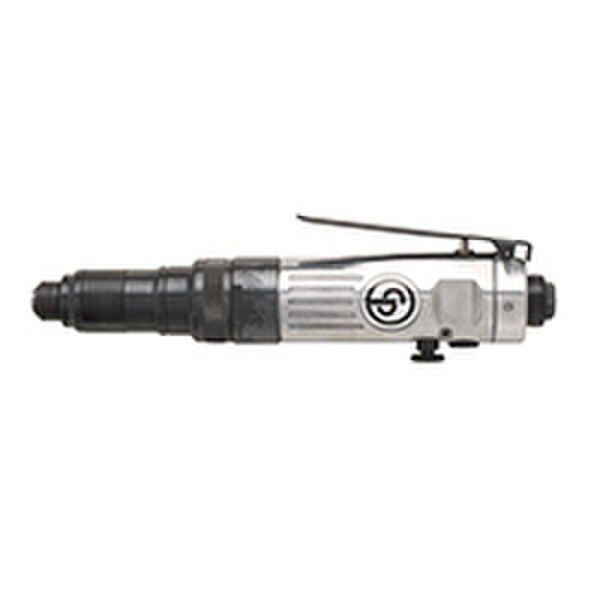

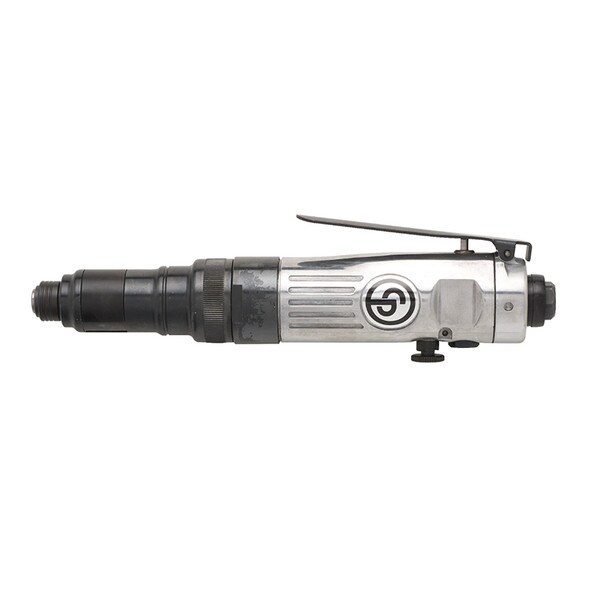

Chicago Pneumatic 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm
CP782
CP782, 1/4 in. 4.97 Nm Impact Straight Screwdriver, 1800 rpm by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this Impact Screwdriver at a lower price? Call or email Customer Service and we'll match the price!
Benefits
- Reliable cushion clutch
- Comfortable use thanks to low weight
- Faster cycle times with 1,800 rpm
- Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications
Features
- Straight Cushion clutch Screwdriver
- External clutch adjustment
- Built-in 1/4" Female Hexagonal quick-change
- Convenient single handed forward/reverse valve
- High torque: 44 in.lbs (5 Nm)
- Progressive lever start and suspension bail
Features & Benefits
- Compact for easy access
- Low noise & vibration for operator comfort
- Robust and durable
Technical Specifications
Model
CP782
Type
Impact Screwdriver
Drive size
1/4'' hex
Manufacturer
Chicago Pneumatic
Length (mm)
245
Length (In)
9.6
Min Torque (Ft Lb)
2.58
Free Speed (RPM)
1800
SKU
T025097
Diameter - mm
30
Stock Code
2
Air Inlet
1/4 in.
Style
Inline
Clutch Type
Cushion
Max Torque (Ft Lb)
3.7
Min Torque (Nm)
3.5
Max Torque (Nm)
5
Output Drive (In)
1/4
Min Hose Size (in)
3/8
Weight (lbs)
2.5
Handle Type
Straight
Bit Holder
Quick Change Hexagonal Female
Drive Type
1/4'' hex
Air Cons. @ Free Speed (cfm)
16.1
Technical Documents
Chicago Pneumatic CP782 Impact Screwdriver Parts Breakdown (PDF)- Chicago Pneumatic CP782 Impact Screwdriver Operator Manual (PDF)
- Chicago Pneumatic CP782 Impact Screwdriver CE Certificate (PDF)
- Chicago Pneumatic Screwdriver and Nutrunner Safety Instructions (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
