6151710230 | CP4220AL | Rivet Squeezer, 6000 lb max, short alligator jaw
Overview

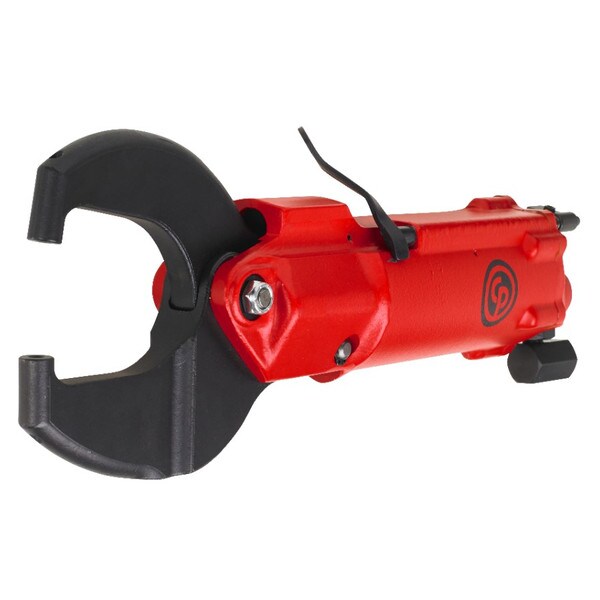

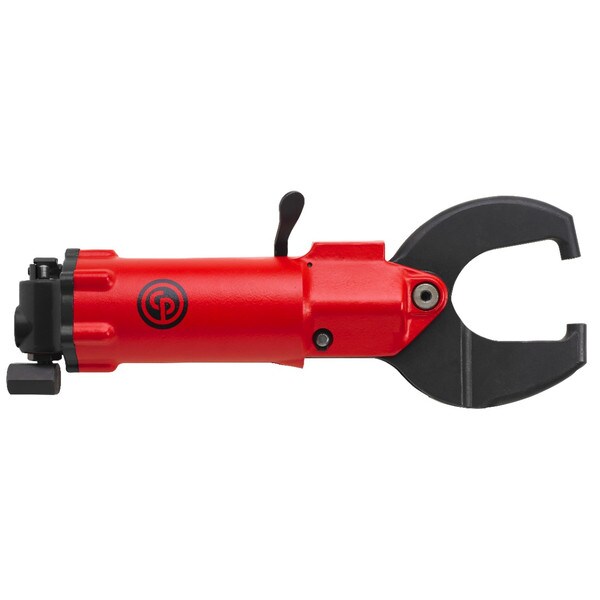

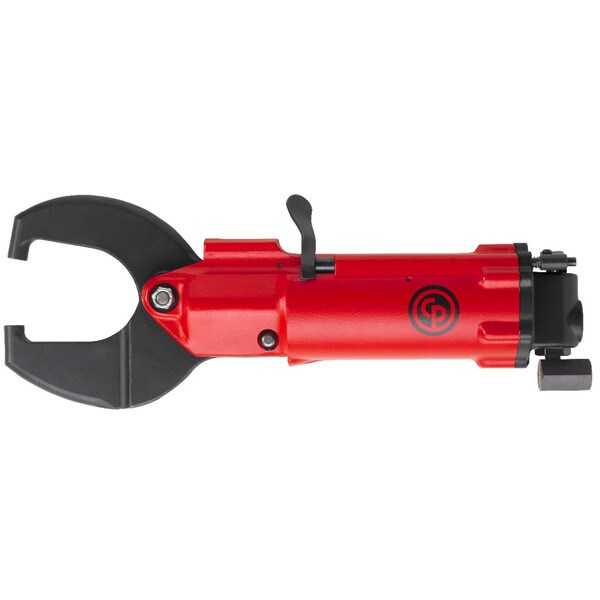

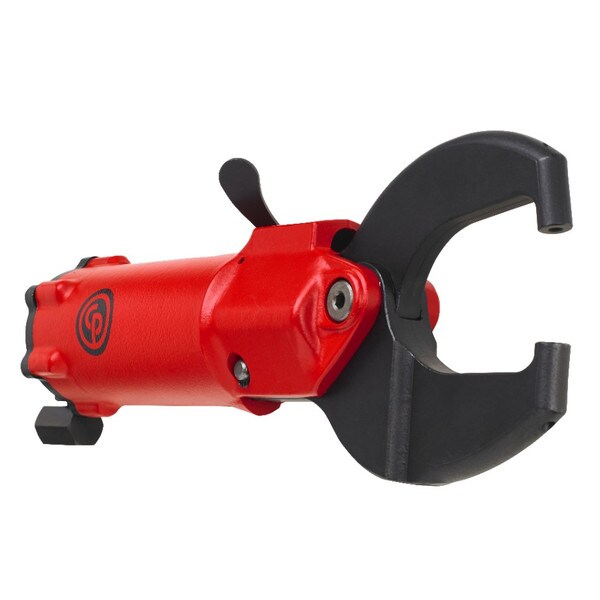

Chicago Pneumatic Rivet Squeezer, 6000 lb max, short alligator jaw
Rivet Squeezer, 6000 lb max, short alligator jaw, model# CP4220AL available to order online. Do you see this Chicago Pneumatic Rivet Squeezer available elsewhere for a lower price? Contact Customer Service to price match!
Benefits- Smooth operation and almost vibrationless
- Perfectly adapted for metal structure repair
- Powerful and robust
- Rivet squeezer with long alligator jaw
- Can do rivets up to 3 inches (75 mm) from edge
- Swivel inlet for maximum comfort and accessibility
CP4220AL by Chicago Pneumatic
The Aerospace riveting solution from Chicago Pneumatic! This Rivet Squeezer has a 3/32 and 1/8 in. rivet capacity.
Features & Benefits
- 6000 lb max
- Smooth operation and almost vibrationless
- Swivel inlet for maximum comfort and accessibility
- Adapted for metal structure repair
Technical Specifications
Size
3/32, 1/8 in.
Model
CP4220AL
Type
Rivet Squeezer
Manufacturer
Chicago Pneumatic
SKU
6151710230
Stock Code
2
Weight (lbs)
4.75
Series
CP42
Air Inlet NPT (in)
1/4
Capacity (lbs)
6000
Technical Documents
Chicago Pneumatic CP42 Series Rivet Hammers and Squeezers Brochure (PDF)- Chicago Pneumatic CP42 Series Rivet Squeezers Operators Manual (PDF)
- Chicago Pneumatic CP4220AL Rivet Squeezer Parts Breakdown (PDF)
- Chicago Pneumatic Compression Tools Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
