6151606040 | CP3119-15ES2 | 2.5 in. Extended Die Grinder, 15000 rpm, 1.2 hp, Rear exhaust
Overview

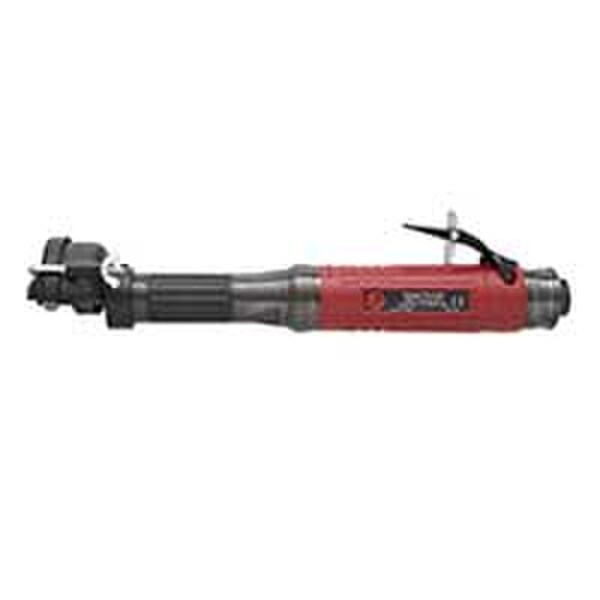

Chicago Pneumatic 2.5 in. Extended Die Grinder, 15000 rpm, 1.2 hp, Rear exhaust
CP3119-15ES2
CP3119-15ES2, 2.5 in. Extended Die Grinder, 15000 rpm, 1.2 hp, Rear exhaust by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 2.5 in. Extended Die Grinder at a lower price? Call or email and we'll match the price!
Benefits
- Industrial straight wheel grinder
- High productivity
- Highest durability in demanding applications up to 2000 hours maintenance intervals
Features
- Steel housing
- Insulating composite over-housing
- Extended body with rubber grip
- Streamlined safety lever
- 2.5" (63 mm) wheel capacity
- Extended body with rubber grip
- 1.2 hp (900 W) governed motor
- 15,000 rpm free speed
Technical Specifications
Model
CP3119-15ES2
Type
Extended Die Grinder
Manufacturer
Chicago Pneumatic
Length (mm)
338
Free Speed (RPM)
15000
SKU
6151606040
Stock Code
3
Exhaust
Rear
Weight (lbs)
3.50
Wheel Size (in)
2.5 x 0.5 x .375
Series
CP3119
Air Inlet NPT (in)
3/8
Rated Power (hp)
1.2
Air Consp. @ Free Speed (L/s)
7
Technical Documents
- Chicago Pneumatic CP3119-15ES2 2.5 in. Extended Die Grinder Parts Breakdown (PDF)
- Chicago Pneumatic CP3119-15ES2 2.5 in. Extended Die Grinder Operator's Manual (PDF)
- Chicago Pneumatic Air Die Grinder Safety Instructions (PDF)
- Chicago Pneumatic CP3119-15ES2 2.5 in. Extended Die Grinder CE Certificate (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
