6151580280 | CP1820R22 | 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall

(0)No Reviews yet
$3,033.29
$3791
$757.71
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

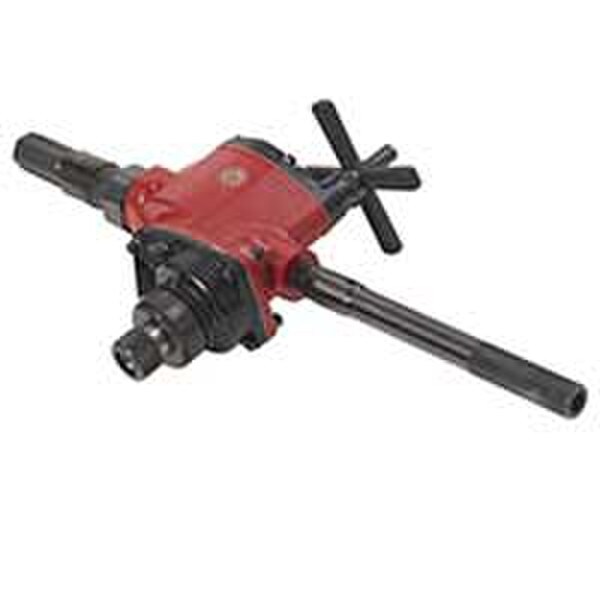

Chicago Pneumatic 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall

CP1820R22

CP1820R22, 7/8 in. Pneumatic Air Drill, reversible, 1.2 hp, 480 rpm, 57.8 ft lb stall by Chicago Pneumatic. Available to order on flexibleassembly.com - Do you see this 7/8 in. Pneumatic Air Drill at a lower price? Call or email and we'll match the price!

Benefits
  • Super Industrial drills designed for intensive duty and high durability with precision
  • Ideal for drilling, reaming & tapping of mild steel, cast iron
Features
  • 7/8" (22 mm) reversible heavy duty drill, 480rpm of free speed
  • Powerfull with 1.2 hp (890 W) motor
  • Morse Taper No.2 drill socket
  • Good for drilling up to 7/8", reaming & tapping up to 3/4"
  • Self Return rolling throttle ensures the safety control
  • Excellent durable gearbox ensures the strong drilling
Back

Features & Benefits

  • High power 0.5hp (375W) with excellent control by teasing throttle handle
  • High Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrationH
  • High quality 1/4" (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
Back

Technical Specifications

Model
CP1820R22
Type
Drill
Manufacturer
Chicago Pneumatic
Length (mm)
282
Free Speed (RPM)
480
SKU
6151580280
Stock Code
2
Style
T-Handle
Max Torque (Ft Lb)
57.8
Weight (lbs)
16.0
Handle Type
T-Handle
Stall Torque (ft lb)
57.8
Series
Low Speed
Spindle
No. 2 Morse Taper
Stall Torque (in lb)
693.6
Air Inlet NPT (in)
1/2
Chuck Capacity (in)
7/8
Rated Power (hp)
1.2
Reversible
Yes
Air Consp. @ Free Speed (L/s)
20
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Ratings & Reviews

No reviews available

Be the first to Write a Review
