165511518 | DLV45 SPC Series Inline Electric Screwdriver, 17.7 - 39.8 in-lbs.
Overview

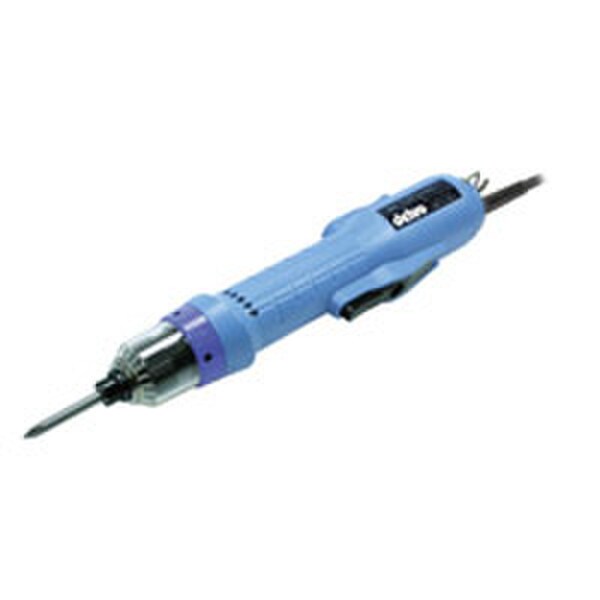

Introducing the Nitto Kohki Delvo DLV45LL-SPC (LKU) Electric Screwdriver, a powerful and versatile assembly tool designed to streamline your operations. Manufactured by Nitto Kohki, a leading brand in the industry, this electric screwdriver combines precision, efficiency, and durability to meet the demands of even the most challenging fastening tasks.
- Torque Range: 17.7 - 39.8 in-lbs (2 - 4.5 Nm)
- Speed Range: 1,000 - 3,600 RPM
- Power Supply: 115V
- Weight: 2.2 lbs (1 kg)
- Manufacturer: Nitto Kohki
Features & Benefits
- High Torque Capacity: With a maximum torque output of 39.8 in-lbs (4.5 Nm), the DLV45LL-SPC is capable of handling a wide range of fastening applications, making it an ideal choice for various industries.
- Variable Speed Control: The screwdriver features a variable speed range from 1,000 to 3,600 RPM, allowing you to adjust the speed according to the specific requirements of your task.
- Durable Construction: Nitto Kohki's commitment to quality ensures that this electric screwdriver is built to withstand the rigors of industrial environments, providing long-lasting performance.
- Lightweight and Ergonomic Design: The DLV45LL-SPC is designed with a lightweight and ergonomic body, ensuring comfortable handling and reducing operator fatigue during extended use.
Technical Specifications
Min Torque - In Lbs
17.7
Max Torque - In Lbs
39.8
Min Torque - Nm
2
Max Torque - Nm
4.5
Start Type
Lever Start
Style
Inline
Free Speed - rpm
650
Voltage
115V
Technical Documents
Nitto Kohki Delvo Product Catalog (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
Frequently Asked Questions
What is the torque range of the 165511518?
What type of application is the 165511518 best suited for?
Electric Torque Screwdrivers like the 165511518, are most commonly used for medium to heavy assembly applications where precise torque control is required. The 165511518 is an Inline model.
How do I set the torque on the 165511518?
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Does the 165511518 have a warranty?
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
